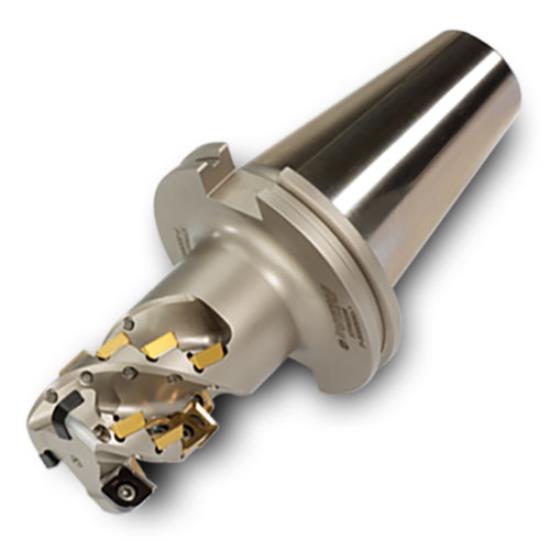

2.0000" Diameter 25J3P-2006248R01-R GoldQuadF ExtCut End Mill
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
2907141
2907141
25J3P-2006248R01-R
25J3P-2006248R01-R
Weight: 0.017 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
25J3p-2006248R01-R Goldquadf Extcut End Mill Iso Item #25J3p-2006248R01-R Ingersoll Part #2907141 Dc - Cutting Diameter : 2.000. Apmx - Depth Of Cut Max.: 4.080. Oal - Overall Length: 10.25. Zeff - Eff. Teeth: 3. Csp - Coolant: Yes. Kapr - Cutting Edge Angle: 90.0. Lf - Functional Length: 6.25. Znp - Peripheral Insert Count: 30. Lux - Usable Length Max.: 5.12. Zefp - Eff. Teeth Periphery: 3. Znf - Face Insert Count: 3. Nof - Flute Count: 3. Ccms - Connection Code Machine Side: Ictc #50 .125 Draw. Fhh - Flute Helix Hand: Right. Dc - Cutting Dia.: 2.000. Apmx - Depth Of Cut Max.: 4.080. Oal - Overall Length: 10.25. Zeff - Eff. Teeth: 3. Csp - Coolant: Yes. Kapr - Cutting Edge Angle: 90.0. Lf - Functional Length: 6.25. Znp - Peripheral Insert Count: 30. Lux - Usable Length Max.: 5.12. Zefp - Eff. Teeth Periphery: 3. Znf - Face Insert Count: 3. Nof - Flute Count: 3. Ccms - Connection Code Machine Side: Ictc #50 .125 Draw. Fhh - Flute Helix Hand: Right.
- 02.000"
- 50 Taper Connection
- 13mm Insert
- Side Insert with 4 indexes
- End Insert Corner: .250" R with 2 indexes
- Ideal for roughing SS & Hi-Temps
- All Eff. / RH Helix
- 02.000"
- 50 Taper Connection
- 13 mm Insert
- Side Insert with 4 indexes
- End Insert Corner: .250" R with 2 indexes
- Ideal for roughing SS & Hi-Temps
- All Eff. / RH Helix
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 2907141
- Cutter Diameter
- 2.0000"
- Overall Length
- 10-1/4"
-
Coolant Through
- Yes
