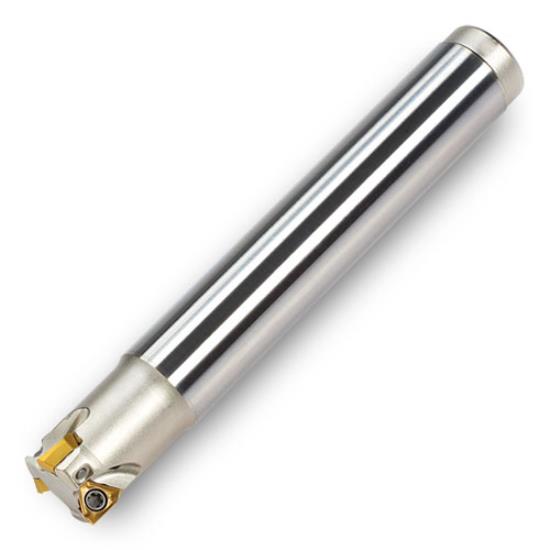

1Kj1b-04007S4r01 Hipostrio End Mill Iso Item #1Kj1b-04007S4r01 Ingersoll Part #2925868 Dc - Cutting Diameter : 0.437. Apmx - Depth Of Cut Max.: 0.130. Oal - Overall Length: 3.00. Zeff - Eff. Teeth: 2. Dcon - Shank Diameter : 0.5000. Csp - Coolant: Yes. Rmpx - Ramp Angle Max.: 3.0. Kapr - Cutting Edge Angle: 90.0. Lux - Usable Length Max.: 0.75. Lpr - Protruding Length: 1.22. Dc - Cutting Dia.: 0.437. Apmx - Depth Of Cut Max.: 0.130. Oal - Overall Length: 3.00. Zeff - Eff. Teeth: 2. Dcon - Shank Dia.: 0.5000. Csp - Coolant: Yes. Rmpx - Ramp Angle Max.: 3.0. Kapr - Cutting Edge Angle: 90.0. Lux - Usable Length Max.: 0.75. Lpr - Protruding Length: 1.22.

• 0.312-.625"
• Cylindrical Shank
• 4mm Insert with 3 indexes
• 32-63 Ra surface finishes when engaging the wiper (WEP)
• Insert corners: .008" & .015" R
• .13" Depth of cut
• 0.312-.625"
• Cylindrical Shank
• 4 mm Insert with 3 indexes
• 32-63 Ra surface finishes when engaging the wiper (WEP)
• Insert corners: .008" & .015" R
• .13" Depth of cut
• C-Adapter (ISO 26623-1)
• Heavy Duty Hydraulic Milling Chuck
• Quick Change Holder
• Runout Accuracy <.00012"
• High Torque Transmission
• Recommended for chatter dampening when machining high temperature alloys such as titanium
• Chucking forces will be reduced by 25% when using sleeves
• Balanced G2.5@25,000 RPM
• *See Notes below
• CAT V-Flange
• Hydraulic Milling Chuck
• CAT40 Balanced G2.5@18,000 RPM
• CAT50 Balanced G2.5@12,000 RPM
• Runout Accuracy <.00012"
• Recommended for chatter dampening when machining high temperature alloys such as titanium
• Chucking forces will be reduced by 25% when using sleeves
• *See Notes below
• ER Series DIN 6499/ISO15488-B Collet
• Single Diameter
• 8 Slot Rubber Sealed Design
• AA High Precision
• .0002" TIR
• Collapse Range 0.008" Max
• Super Finish Surface with Anti-Corrosion protection
• 1450 PSI Max
• For use with coolant through cutting tools
• HSK-A (DIN 69893/A)
• Hydraulic Milling Chuck
• HSKA50-A63 balanced G2.5@25,000RPM
• HSKA100 balanced G2.5@18,000RPM
• Note: Chucking forces will be reduced by 25% when optional reduction sleeves are used
• *See additional notes below
• Sealed Reduction Sleeve
• For use in hydraulic milling chucks
• Note: Sleeves are compatible with all cylindrical shanks and Weldon shanks .250"-.750" diameter (Sleeves are not recommended for use with Weldon shanks over .750" diameter)
• Sealed Power Milling Chuck Sleeve
• 1450 Max PSI
• Preset Screw available for tool positioning (Sold Separately)
• *Chucking forces will be reduced by 25% when optional reduction sleeves are used
