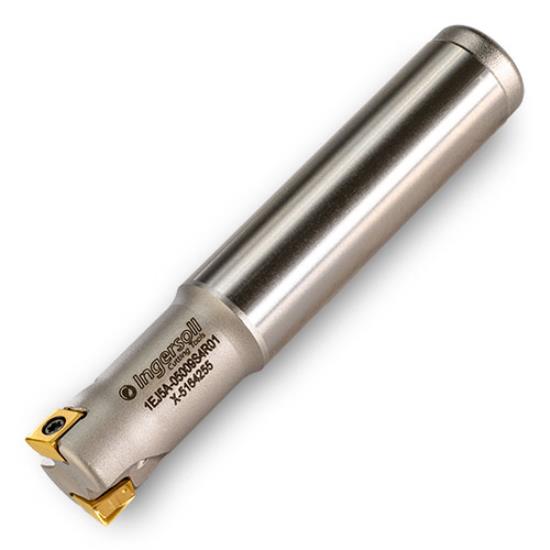

1Ej5a-05009S4r01 Maxsfeed End Mill Dc - Cutting Diameter : 0.500. Apmx - Depth Of Cut Max.: 0.185. Oal - Overall Length: 2.78. Zeff - Eff. Teeth: 2. Dcon - Shank Diameter : 0.5000. Csp - Coolant: Yes. Rmpx - Ramp Angle Max.: 1.6. Kapr - Cutting Edge Angle: 90.0. Lux - Usable Length Max.: 0.80. Lpr - Protruding Length: 1.00. Dc - Cutting Dia.: 0.500. Apmx - Depth Of Cut Max.: 0.185. Oal - Overall Length: 2.78. Zeff - Eff. Teeth: 2. Dcon - Shank Dia.: 0.5000. Csp - Coolant: Yes. Rmpx - Ramp Angle Max.: 1.6. Kapr - Cutting Edge Angle: 90.0. Lux - Usable Length Max.: 0.80. Lpr - Protruding Length: 1.00.

• 0.500-1.000"
• Cylindrical Shank
• 5mm insert with 4 indexes
• Insert corners: .015"R
• .185" Max depth of cut
• 0.500-1.000"
• Cylindrical Shank
• 5 mm insert with 4 indexes
• Insert corners: .015"R
• .185" Max depth of cut
• Sealed Reduction Sleeve
• For use in hydraulic milling chucks
• Note: Sleeves are compatible with all cylindrical shanks and Weldon shanks .250"-.750" diameter (Sleeves are not recommended for use with Weldon shanks over .750" diameter)
