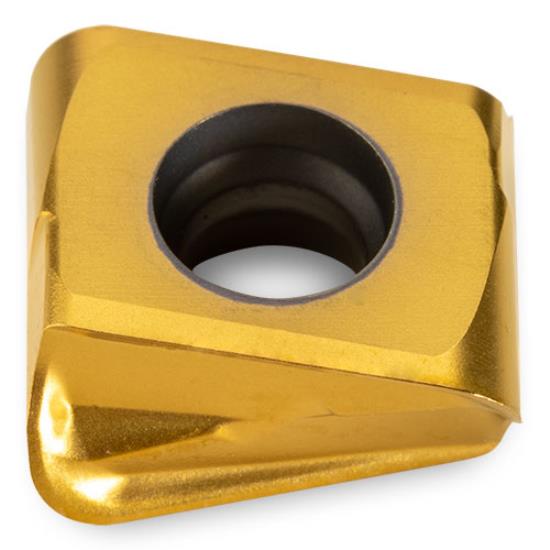

Cgm212r003-Ml/Cgm212r003-Ml In4015 Maxsfeed Insert Re - Corner Radius: 0.063. Ih - Insert Hand: Right. Noi - Number Of Indexes: 4. S - Thickness: 0.169. Bs - Wiper Length: 0.022. Application: Multi-Purpose, Keen Edge. Insl - Insert Length: 0.345. W1 - Insert Width: 0.336.

• Tangential Inserts with 4 Cutting Edges
• RH Inserts
• Metric Sizes: 8 mm
• 0.750-1.000"
• Weldon Connection
• 8 mm insert with 4 indexes
• .317" Max depth of cut
• Insert corners: .015", .031", .062"R
• 0.750-1.000"
• Chip Surfer Connection
• 8 mm insert with 4 indexes
• .317" Max depth of cut
• Insert corners: .015", .031", .062"R
• 0.750-1.500"
• TopOn Connection
• 8 mm insert with 4 indexes
• .317" Max depth of cut
• Insert corners: .015", .031", .062"R
• 01.000-2.000"
• Cylindrical Shank Connection
• 8 mm insert with 4 indexes
• .317" Max depth of cut
• Insert corners: .015", .031", .062"R
• 01.500-3.000"
• 8 mm insert with 4 indexes
• .317" Max. Depth of Cut
• Insert corners: .015", .031", .062" R
