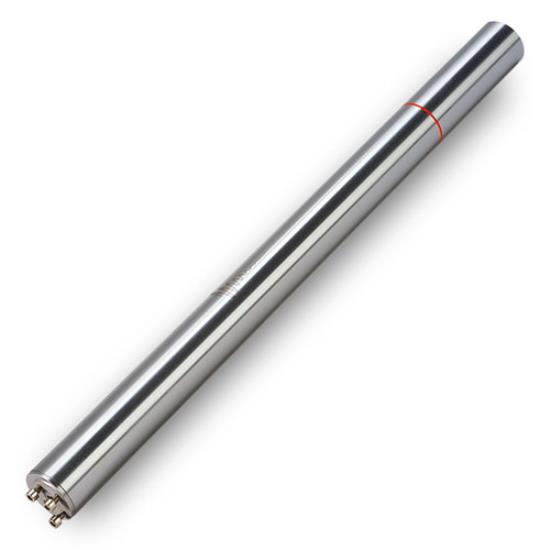

DTA-D50-7D-C/DTA-D50-7D-C T-Absorber Bars
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
2946013
2946013
DTA-D50-7D-C
DTA-D50-7D-C
Weight: 0.016 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description

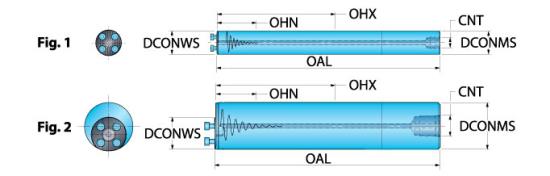

Dta-D50-7D-C/Dta-D50-7D-C T-Absorber Bars Oal - Overall Length: 518.0 Mm. Bmc - Body Material Code: Steel. Dconms - Connection Dia. Machine Side: 50.00 Mm. Dconws - Connection Dia. Workpiece Side: 40.00 Mm. Figure - Figure: 2. Ohn - Overhang Min.: 168.00 Mm. Ohx - Overhang Max.: 318.00 Mm. Cnt - Coolant Connection Size: 1/2-14 Bspp (G1/2). Uldr - Usable Length Dia. Ratio: 7Ã?.
- L:D Ratio - 7:1, Anti-Vibration
- 16-60 mm Shank
- T-Modular Connection
- Coolant Thru
- Negative 80deg CNMX HB Inserts
- -5deg Lead, Hook Lever Clamp
- T-Modular Connection
- 40 mm
- Coolant Thru
- Negative 55deg DN_G/DN_X-1305 Inserts
- -3deg Lead, Hook Lever Clamp
- T-Modular Connection
- 40 mm
- Coolant Thru
- Negative 35deg VN_X/YN_G-1304 Inserts
- -3deg Lead, Hook Lever Clamp
- T-Modular Connection
- 40 mm
- Coolant Thru
- Positive 80deg CC_T/CC_W Inserts
- -5deg Lead, Screw Held
- T-Modular Connection
- 16-40 mm
- Coolant Thru (except DTC-D16 size)
- Positive 55deg DC_T/DC_W Inserts
- -3deg Lead, Screw Held
- T-Modular Connection
- 16-40 mm
- Coolant Thru (except DTC-D16 size)
- Lay Down Threading Inserts
- Screw Held
- T-Modular Connection
- 25-40 mm
- Coolant Thru
- Positive Triangular TC_T/TC_W Inserts
- -1deg Lead, Screw Held
- T-Modular Connection
- 16-40 mm
- Coolant Thru
- Positive 35deg VB_T/VB_W Inserts
- -3deg Lead, Screw Held
- T-Modular Connection
- 20-40 mm
- Coolant Thru
- Negative 80deg CN_G/CN_M/CN_A Inserts
- -5deg Lead, Multidirectional Clamp
- T-Modular Connection
- 32-40 mm
- Coolant Thru
- Negative 55deg DN_G/DN_M/DN_A Inserts
- -3deg Lead, Multidirectional Clamp
- T-Modular Connection
- 40 mm
- Coolant Thru
- Deep Groove Depth
- For Internal Grooving
- T-Modular Connection
- 25-40 mm
- High Pressure Coolant
- Metric sleeve for metric T-Absorber anti-vibration boring bars
- Flat surface for clamping to the machine's tool holder
- One-sided slit for robust clamping force and high precision
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 2946013
- ISO Part Number
- DTA-D50-7D-C
- ANSI Part Number
- DTA-D50-7D-C
