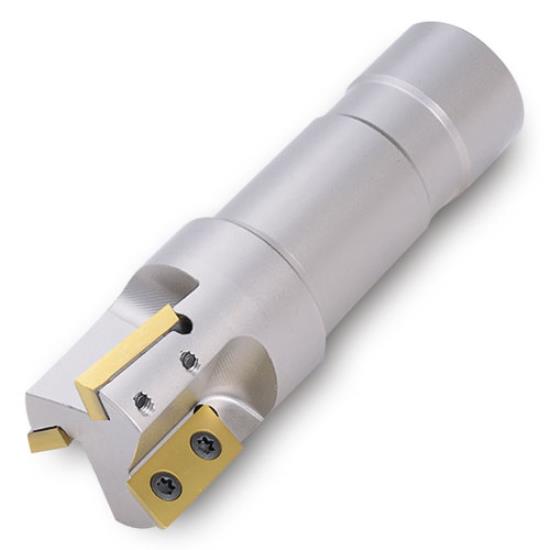

0.7500" Diameter 15J1H-0702280R01 RoughAir End Mill
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
3002237
3002237
15J1Z0780R01
15J1H-0702280R01
Weight: 0.002 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
15J1h-0702280R01 Roughair End Mill Iso Item #15J1z0780r01 Ingersoll Part #3002237 Dc - Cutting Diameter : 0.750. Apmx - Depth Of Cut Max.: 0.950. Oal - Overall Length: 4.50. Zeff - Eff. Teeth: 1. Dcon - Shank Diameter : 1.0000. Csp - Coolant: No. Rmpx - Ramp Angle Max.: 12.9. Kapr - Cutting Edge Angle: 90.0. Lux - Usable Length Max.: 1.30. Lpr - Protruding Length: 2.25. Dc - Cutting Dia.: 0.750. Apmx - Depth Of Cut Max.: 0.950. Oal - Overall Length: 4.50. Zeff - Eff. Teeth: 1. Dcon - Shank Dia.: 1.0000. Csp - Coolant: No. Rmpx - Ramp Angle Max.: 12.9. Kapr - Cutting Edge Angle: 90.0. Lux - Usable Length Max.: 1.30. Lpr - Protruding Length: 2.25.
- 0.750-1.500" (Weldon)
- .95" Depth of cut
- 25mm Insert with 2 indexes
- Insert corners: .015" .031", .062" R
- 0.750-1.500" (Weldon)
- .95" Depth of cut
- 25 mm Insert with 2 indexes
- Insert corners: .015" .031", .062" R
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 3002237
- Cutter Diameter
- 0.7500"
- Overall Length
- 4-1/2"
-
Coolant Through
- No
