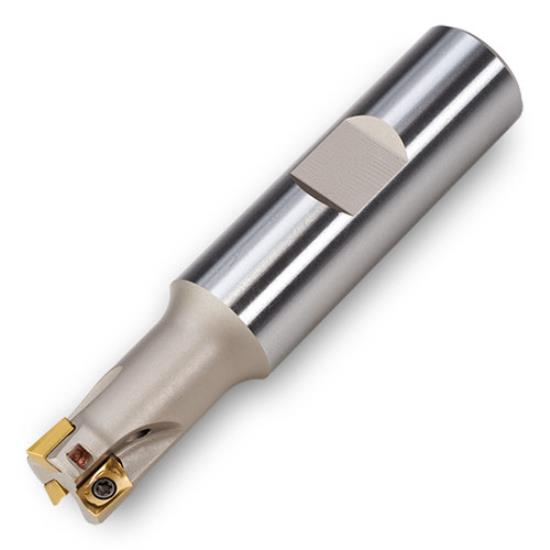

1.0000" Diameter 12J1D-1001780R01 HiPosMicro End Mill
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
3018973
3018973
12J1D-1001780R01
12J1D-1001780R01
Weight: 0.75 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
12J1d-1001780R01 Hiposmicro End Mill Iso Item #12J1d-1001780R01 Ingersoll Part #3018973 Dc - Cutting Diameter : 1.000. Apmx - Depth Of Cut Max.: 0.220. Oal - Overall Length: 4.00. Zeff - Eff. Teeth: 7. Dcon - Shank Diameter : 1.0000. Csp - Coolant: Yes. Kapr - Cutting Edge Angle: 90.0. Lux - Usable Length Max.: 1.75. Lpr - Protruding Length: 1.75. Dc - Cutting Dia.: 1.000. Apmx - Depth Of Cut Max.: 0.220. Oal - Overall Length: 4.00. Zeff - Eff. Teeth: 7. Dcon - Shank Dia.: 1.0000. Csp - Coolant: Yes. Kapr - Cutting Edge Angle: 90.0. Lux - Usable Length Max.: 1.75. Lpr - Protruding Length: 1.75.
- 0.375-1.000"
- Weldon Shank
- 6mm Insert with 2 indexes
- .22" Depth of cut
- 32-63 Ra surface finishes when engaging the integrated wiper (WEP)
- Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed
- 0.375-1.000"
- Weldon Shank
- 6 mm Insert with 2 indexes
- .22" Depth of cut
- 32-63 Ra surface finishes when engaging the integrated wiper (WEP)
- Insert corners: SC, .008", .015", .031", .062" R & Hi-Feed
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 3018973
- Cutter Diameter
- 1.0000"
- Overall Length
- 4"
-
Coolant Through
- Yes
