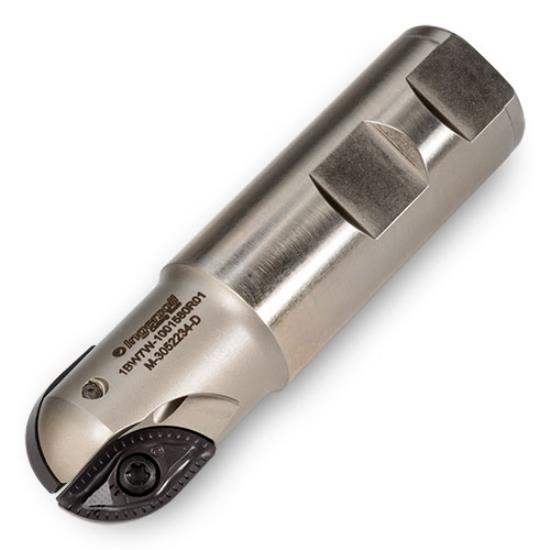

0.7500" Diameter 1BW7V-0704084R01 ProBall End Mill
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
3029884
3029884
1BW7V-0704084R01
1BW7V-0704084R01
Weight: 0.001 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
1Bw7v-0704084R01 Proball End Mill Iso Item #1Bw7v-0704084R01 Ingersoll Part #3029884 Dc - Cutting Diameter : 0.750. Apmx - Depth Of Cut Max.: 0.375. Oal - Overall Length: 6.00. Zeff - Eff. Teeth: 2. Dcon - Shank Diameter : 0.7500. Csp - Coolant: Yes. Lux - Usable Length Max.: 2.09. Prfrad - Profile Radius: 0.375. Lpr - Protruding Length: 2.25. Dc - Cutting Dia.: 0.750. Apmx - Depth Of Cut Max.: 0.375. Oal - Overall Length: 6.00. Zeff - Eff. Teeth: 2. Dcon - Shank Dia.: 0.7500. Csp - Coolant: Yes. Lux - Usable Length Max.: 2.09. Prfrad - Profile Radius: 0.375. Lpr - Protruding Length: 2.25.
- 0.500-1.000â?
- Weldon Shank
- Insert with 2 indexes
- 2 Effective
- Max. depth of cut: Full Radius
- Insert corners: .250", .375" & .500" R
- 0.500-1.000â?
- Weldon Shank
- Insert with 2 indexes
- 2 Effective
- Max. depth of cut: Full Radius
- Insert corners: .250", .375" & .500" R
- Sealed Reduction Sleeve
- For use in hydraulic milling chucks
- Note: Sleeves are compatible with all cylindrical shanks and Weldon shanks .250"-.750" diameter (Sleeves are not recommended for use with Weldon shanks over .750" diameter)
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 3029884
- Cutter Diameter
- 0.7500"
- Overall Length
- 6"
- Radius Size
- 3/8"
-
Coolant Through
- Yes
