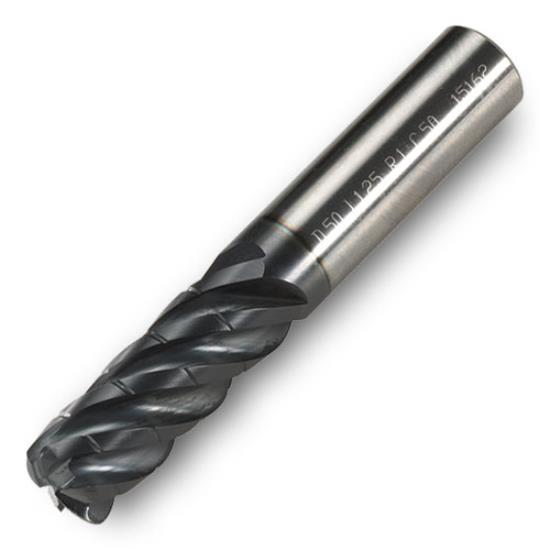

0.3125" Diameter 45D-3162R7RP06 IN2006 Round Line Solid Carbide End Mill

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
0.3125" Diameter 45D-3162R7RP06 IN2006 Round Line Solid Carbide End Mill 0.3125" Diameter 45D-3162R7RP06 IN2006 Round Line Solid Carbide End Mill 0.3125" Diameter 45D-3162R7RP06 IN2006 Round Line Solid Carbide End Mill 0.3125" Diameter 45D-3162R7RP06 IN2006 Round Line Solid Carbide End Mill
INGERSOLL CUTTING TOOLS
3030232
3030232
45D-3162R7RP06 IN2006
45D-3162R7RP06 IN2006
Weight: 0.099 LBS
Brand: INGERSOLL CUTTING TOOLS
$130.00
(14% off)
$112.28
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

45D-3162R7rp06 In2006 Round Line Solid Carbide End Mill Iso Item #45D-3162R7rp06 In2006 Ingersoll Part #3030232 Dc - Cutting Diameter : 0.3125. Apmx - Depth Of Cut Max.: 0.015. Oal - Overall Length: 2.500. Zeff - Eff. Teeth: 4. Fha - Flute Helix Angle: 38. Dcon - Shank Diameter : 0.313. Csp - Coolant: No. Rmpx - Ramp Angle Max.: 5.0. Kapr - Cutting Edge Angle: 90. Reeq - Program Radius Equivalent: 0.060. Dn - Neck Diameter : 0.312. Apmx2 - Depth Of Cut Max. 2: 0.625.

  • 0.250-.750"
  • Cylindrical Shank
  • 4 or 5 flutes, 38 Degree Helix
  • Large corner radii
  • Chatter-free combo hi-feed variable pitch & chip splitter
  • Serrated cutting edge features flat peaks which leave a better surface finish when compared to competitors' roughing end mills
  • Provides the greatest advantage in cavity milling and heavy roughing cuts
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
3030232
Cutter Diameter
0.3125"
Overall Length
2-1/2"
Radius Size
0.06"
Tool Coating
TiAlN
Grade
IN2006
Coolant Through
No
