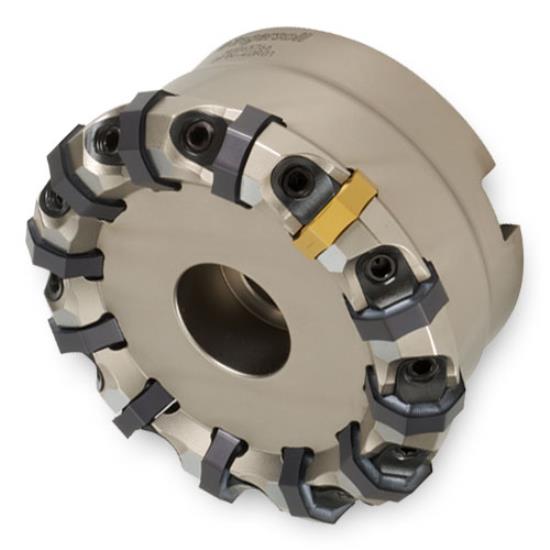

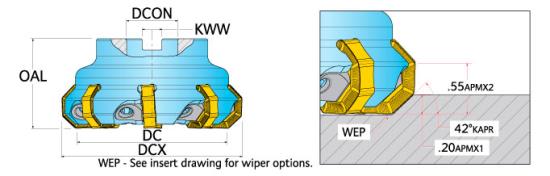

Op1n-30R01 Octoplus Face Mill Iso Item #Op1n-30R01 Ingersoll Part #3030344 Dc - Cutting Diameter : 3.000. Apmx - Depth Of Cut Max.: 0.200. Oal - Overall Length: 1.750. Zeff - Eff. Teeth: 8. Csp - Coolant: No. Kapr - Cutting Edge Angle: 43.0. Hand - Hand: Right. Dcon - Bore Diameter : 1.0000. Kww - Keyway: 0.375. Dcx - Cutting Diameter Max.: 3.53. Dc - Cutting Dia.: 3.000. Apmx - Depth Of Cut Max.: 0.200. Oal - Overall Length: 1.750. Zeff - Eff. Teeth: 8. Csp - Coolant: No. Kapr - Cutting Edge Angle: 42.0. Hand - Hand: Right. Dcon - Bore Dia.: 1.0000. Kww - Keyway: 0.375. Dcx - Cutting Dia. Max.: 3.53.

• 03.000-12.000"
• .20" Depth of cut
• 9mm Inserts with 16 indexes
• 20-40 Ra surface finishes when using wiper in one pocket
• Carbide & SiN options
• RH & LH rotation
• Great price-per-edge economy!
• 03.000-12.000"
• .20" Depth of cut
• 9 mm Inserts with 16 indexes
• 20-40 Ra surface finishes when using wiper in one pocket
• Carbide & SiN options
• RH & LH rotation
• Great price-per-edge economy!
• BT MAS-403
• Shell Mill Holder ISO 3937
• CAT V-Flange
• Shell Mill Holder ISO 3937
• HSK-A (DIN 69893/A)
• Shell Mill Holder ISO 3937
• Balanced G2.5@15,000RPM
• HSK-E (DIN 69893/E)
• Shell Mill Holder ISO 3937
• Balanced G2.5@15,000RPM
• HSK-FM (DIN 69893/F)
• Shell Mill Holder ISO 3937
• For use on Makino models MAG Series A machines
• Balanced G2.5@33,000 RPM
• Note: Orientation pins can be removed for use as a standard HSK F spindle adaption
• Weldon Shank
• ISO 3937 Face Mill Holder
• Modular Innofit System
• Face Mill Adapter
• Coolant Through Center except where noted
