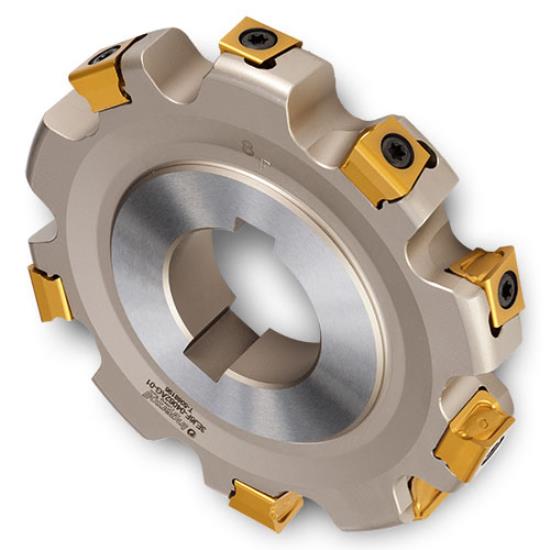

5.0000" Diameter 3EJ6J-05075AH-01 GoldMax4 Slotter
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
3030861
3030861
3EJ6J-05075AH-01
3EJ6J-05075AH-01
Weight: 0.005 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description

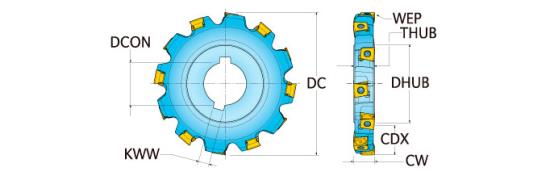

3Ej6j-05075Ah-01 Goldmax4 Slotter Iso Item #3Ej6j-05075Ah-01 Ingersoll Part #3030861 Dc - Cutting Diameter : 5.000. Csp - Coolant: No. Cdx - Cutting Depth Max.: 1.12. Znp - Peripheral Insert Count: 12. Dhub - Hub Diameter : 2.75. Dcon - Bore Diameter : 1.5000. Kww - Keyway: 0.38. Thub - Hub Thickness: 0.720. Cw - Cutting Width: 0.750. Zefp - Eff. Teeth Periphery: 6. Insert - Insert Series: Dgm325. Dc - Cutting Dia.: 5.000. Csp - Coolant: No. Cdx - Cutting Depth Max.: 1.12. Cw - Cutting Width: 0.750. Znp - Peripheral Insert Count: 12. Dhub - Hub Dia.: 2.75. Dcon - Bore Dia.: 1.5000. Kww - Keyway: 0.38. Thub - Hub Thickness: 0.720. Zefp - Eff. Teeth Periphery: 6. Insert - Insert Series: Dgm325.
- 04.000-10.000"
- .750" Cutting Width
- Insert with 4 indexes (2LH/2RH)
- Insert radii: .031", .062", .093", .125"
- Half Effective
- High quality surface finish produced by wiper on all inserts
- 04.000-10.000"
- .750" Cutting Width
- Insert with 4 indexes (2LH/2RH)
- Insert radii: .031", .062", .093", .125"
- Half Effective
- High quality surface finish produced by wiper on all inserts
- CAT V-Flange
- Slotting Cutter Stub Arbor
- For use with Axial drive cutters
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 3030861
- Cutter Diameter
- 5.0000"
-
Coolant Through
- No
