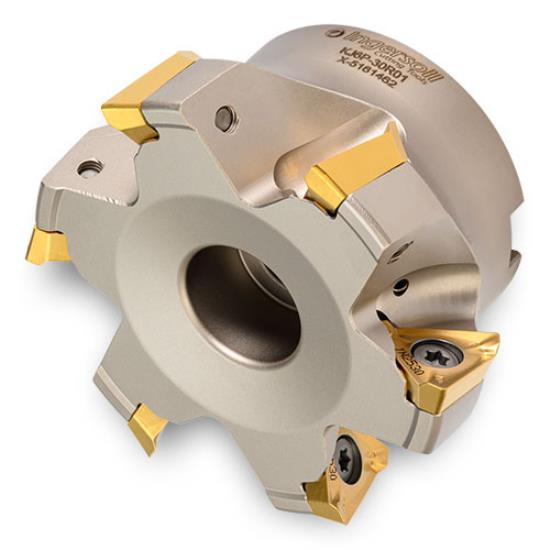

80.00mm Diameter KJ5P080R00 HiPosTrio Face Mill
This item is not available for shipping OR sale for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR.
3031261
3031261
KJ5P080R00
KJ5P080R00
Weight: 3.109 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
Kj5p080r00 Hipostrio Face Mill Iso Item #Kj5p080r00 Ingersoll Part #3031261 Dc - Cutting Diameter : 80.00 Mm. Apmx - Depth Of Cut Max.: 15.00 Mm. Oal - Overall Length: 50.00 Mm. Zeff - Eff. Teeth: 7. Csp - Coolant: Yes. Rmpx - Ramp Angle Max.: 1.3. Kapr - Cutting Edge Angle: 90.0. Hand - Hand: Right. Dcon - Bore Diameter : 27.00 Mm. Kww - Keyway: 12.40 Mm. Dc - Cutting Dia.: 80.00 Mm. Apmx - Depth Of Cut Max.: 15.00 Mm. Oal - Overall Length: 50.00 Mm. Zeff - Eff. Teeth: 7. Csp - Coolant: Yes. Rmpx - Ramp Angle Max.: 1.3. Kapr - Cutting Edge Angle: 90.0. Hand - Hand: Right. Dcon - Bore Dia.: 27.00 Mm. Kww - Keyway: 12.40 Mm.
- 063-160mm
- 13mm Insert with 3 indexes
- 15mm Depth of cut
- 32-63 Ra surface finishes when engaging the wiper (WEP)
- Insert corners: 0.8, 1.6, 2.4 & 3.2mm R
- 063-160 mm
- 13 mm Insert with 3 indexes
- 15 mm Depth of cut
- 32-63 Ra surface finishes when engaging the wiper (WEP)
- Insert corners: 0.8, 1.6, 2.4 & 3.2mm R
- BT MAS-403 Face Contact
- Shell Mill Holder with Coolant Holes ISO 3937 (Metric)
- AD Coolant with Ported Coolant Delivery
- Balanced G2.5@20,000RPM
- BT MAS-403
- Shell Mill Holder with Coolant Holes ISO 3937 (Metric)
- Symmetrical Design, Dynamically Balanced for high RPM machining
- ADB Style Coolant with Ported Coolant Delivery
- Balanced G2.5 @ 20,000 RPM
- NOTE: Balance values are not guaranteed for holders where LF > 120 mm
- C-Adapter (ISO 26623-1)
- Shell Mill Holder with Internal Coolant Holes ISO 3937 (Metric)
- Quick Change Holder
- DIN69871 Form ADB
- Shell Mill Holder with Internal Coolant Holes ISO 3937 (Metric)
- ADB Style Coolant with Ported Coolant Delivery
- Symmetrical Design
- Dynamically balanced for high RPM machining
- DIN69871-40 Balanced G2.5 @ 20,000 RPM
- DIN69871-50 Balanced G2.5 @ 15,000 RPM
- Balance values are not guaranteed where LF > 100 mm
- HSK-A (DIN 69893/A)
- Shell Mill Holder with Internal Coolant Holes ISO 3937 (Metric)
- Symmetrical Design for high RPM Machining
- Heavy Duty Drive Keys for higher torque transfer
- 4 Coolant Ports 90deg apart on Pilot Face
- Balanced G2.5@20,000RPM
- Modular Innofit System
- Anti Vibration Face Mill Adapter (Metric)
- Tuned to Standard Cutter Body Weight
- Cannot be Misaligned
- Coolant Through Center with Coolant Ports in Pilot Face
- For use with Innofit Master Shank Adapters
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 3031261
- Cutter Diameter
- 80.00mm
- Overall Length
- 50 mm
-
Coolant Through
- Yes
