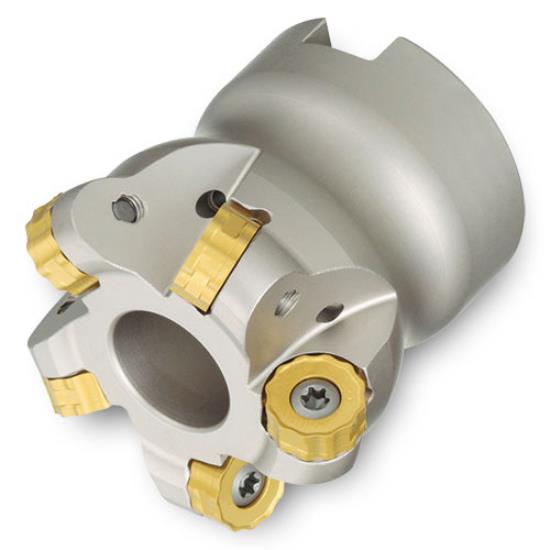

DE6H-30R01 FormMasterR Face Mill
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
3031509
3031509
DE6H-30R01
DE6H-30R01
Weight: 0.004 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
De6h-30R01 Formmasterr Face Mill Iso Item #De6h-30R01 Ingersoll Part #3031509 Apmx - Depth Of Cut Max.: 6.00 Mm. Oal - Overall Length: 1.750. Zeff - Eff. Teeth: 7. Csp - Coolant: Yes. Rmpx - Ramp Angle Max.: 0.5. Dcon - Bore Diameter : 1.0000. Kww - Keyway: 0.375. Dcx - Cutting Diameter Max.: 3.000. Dc - Cutting Diameter : 2.529. Prfrad - Profile Radius: 6.00 Mm. Apmx - Depth Of Cut Max.: 6.00 Mm. Oal - Overall Length: 1.750. Zeff - Eff. Teeth: 7. Csp - Coolant: Yes. Rmpx - Ramp Angle Max.: 0.5. Dcon - Bore Dia.: 1.0000. Kww - Keyway: 0.375. Dcx - Cutting Dia. Max.: 3.000. Dc - Cutting Dia.: 2.529. Prfrad - Profile Radius: 6.00 Mm.
- 02.000â??3.000â?
- 12mm IC insert with 8-16 indexes
- .236" (6 mm) Max. depth of cut
- Round & serrated inserts for application flexibility
- Serrated insert for long reach application & chip management
- Excellent performance & economy!
- 02.000â??3.000â?
- 12 mm IC insert with 8-16 indexes
- .236" (6 mm) Max. depth of cut
- Round & serrated inserts for application flexibility
- Serrated insert for long reach application & chip management
- Excellent performance & economy!
- BT MAS-403 Face Contact
- Shell Mill Holder with Coolant Holes ISO 3937
- AD Style Ported Coolant Delivery
- Balanced G2.5@20,000RPM
- C-Adapter (ISO 26623-1)
- Shell Mill Holder with Internal Coolant Holes ISO 3937
- Quick Change Holder
- CAT Face Contact
- Shell Mill Holder with Internal Coolant Holes ISO 3937
- Symmetrical Design, Dynamically Balanced for high RPM Machining
- AD Style Coolant with Ported Coolant Delivery
- Balanced G2.5 @ 20,000 RPM
- CAT V-Flange
- Shell Mill Holder with Internal Coolant Holes ISO 3937
- Symmetrical Design, Dynamically Balanced for high RPM Machining
- ADB Style Coolant with Ported Coolant Delivery
- Balanced G2.5@20,000RPM
- HSK-A (DIN 69893/A)
- Shell Mill Holder with Internal Coolant Holes ISO 3937
- Symmetrical Design for high RPM Machining
- Heavy Duty Drive Keys for higher torque transfer
- 4 Coolant Ports spaced 90deg apart on face of pilot
- Balanced G2.5@20,000RPM
- Modular Innofit System
- Anti Vibration Face Mill Adapter
- Tuned to Standard Cutter Body Weight
- Cannot be Misaligned
- Coolant Through Center with Coolant Ports in Pilot Face
- For use with Innofit Master Shank Adapters
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 3031509
-
Coolant Through
- Yes
