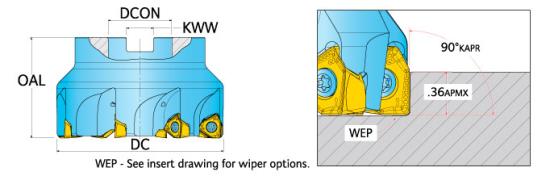

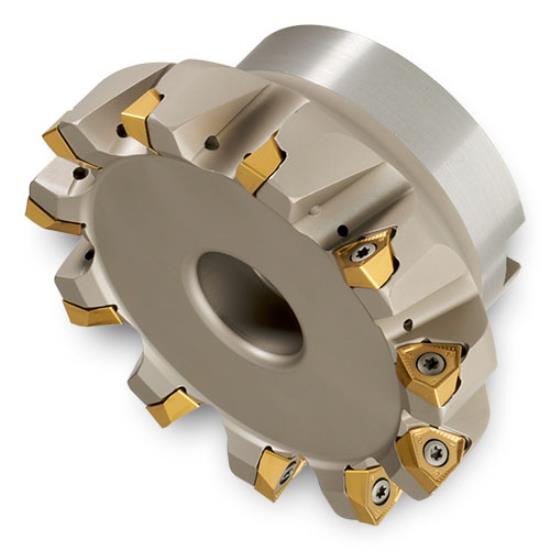

Dj6p-20R01 Diposhexa Face Mill Iso Item #Dj6p-20R01 Ingersoll Part #3031737 Dc - Cutting Diameter : 2.000. Apmx - Depth Of Cut Max.: 0.362. Oal - Overall Length: 1.570. Zeff - Eff. Teeth: 4. Csp - Coolant: Yes. Kapr - Cutting Edge Angle: 90.0. Hand - Hand: Right. Dcon - Bore Diameter : 0.7500. Kww - Keyway: 0.312. Dc - Cutting Dia.: 2.000. Apmx - Depth Of Cut Max.: 0.362. Oal - Overall Length: 1.570. Zeff - Eff. Teeth: 4. Csp - Coolant: Yes. Kapr - Cutting Edge Angle: 90.0. Hand - Hand: Right. Dcon - Bore Dia.: 0.7500. Kww - Keyway: 0.312.

• 02.000-6.000"
• .36" Depth of Cut
• 20-32 Ra surface finishes when engaging the wiper (WEP)
• Insert corners: .015", .031", .062" R
• 02.000-6.000"
• 13 mm Insert with 6 indexes
• .36" Depth of Cut
• 20-32 Ra surface finishes when engaging the wiper (WEP)
• Insert corners: .015", .031", .062" R
• BT MAS-403 Face Contact
• Shell Mill Holder with Coolant Holes ISO 3937
• AD Style Ported Coolant Delivery
• Balanced G2.5@20,000RPM
• C-Adapter (ISO 26623-1)
• Shell Mill Holder with Internal Coolant Holes ISO 3937
• Quick Change Holder
• CAT Face Contact
• Shell Mill Holder with Internal Coolant Holes ISO 3937
• Symmetrical Design, Dynamically Balanced for high RPM Machining
• AD Style Coolant with Ported Coolant Delivery
• Balanced G2.5 @ 20,000 RPM
• CAT V-Flange
• Shell Mill Holder with Internal Coolant Holes ISO 3937
• Symmetrical Design, Dynamically Balanced for high RPM Machining
• ADB Style Coolant with Ported Coolant Delivery
• Balanced G2.5@20,000RPM
• HSK-A (DIN 69893/A)
• Shell Mill Holder with Internal Coolant Holes ISO 3937
• Symmetrical Design for high RPM Machining
• Heavy Duty Drive Keys for higher torque transfer
• 4 Coolant Ports spaced 90deg apart on face of pilot
• Balanced G2.5@20,000RPM
• Modular Innofit System
• Anti Vibration Face Mill Adapter
• Tuned to Standard Cutter Body Weight
• Cannot be Misaligned
• Coolant Through Center with Coolant Ports in Pilot Face
• For use with Innofit Master Shank Adapters
