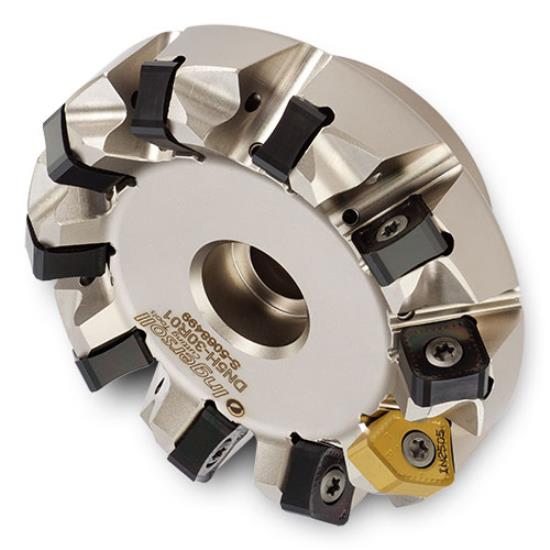

Dn6h063r00 Isoplus 45° Face Mill Iso Item #Dn6h063r00 Ingersoll Part #3074986 Dc - Cutting Diameter : 63.00 Mm. Apmx - Depth Of Cut Max.: 6.00 Mm. Oal - Overall Length: 40.00 Mm. Zeff - Eff. Teeth: 6. Csp - Coolant: Yes. Kapr - Cutting Edge Angle: 45.0. Hand - Hand: Right. Dcon - Bore Diameter : 22.000 Mm. Kww - Keyway: 10.40 Mm. Dcx - Cutting Diameter Max.: 77.5 Mm. Dc - Cutting Dia.: 63.00 Mm. Apmx - Depth Of Cut Max.: 6.00 Mm. Oal - Overall Length: 40.00 Mm. Zeff - Eff. Teeth: 6. Csp - Coolant: Yes. Kapr - Cutting Edge Angle: 45.0. Hand - Hand: Right. Dcon - Bore Dia.: 22.000 Mm. Kww - Keyway: 10.40 Mm. Dcx - Cutting Dia. Max.: 77.5 Mm.

• 050-250mm
• 12mm Insert with 8 indexes
• 6mm Depth of cut
• Finishes as good as 8 Ra when using wiper in one pocket
• Great price-per-edge economy!
• 050-250 mm
• 12 mm Insert with 8 indexes
• 6 mm Depth of cut
• Finishes as good as 8 Ra when using wiper in one pocket
• Great price-per-edge economy!
• BT MAS-403 Face Contact
• Shell Mill Holder with Coolant Holes ISO 3937 (Metric)
• AD Coolant with Ported Coolant Delivery
• Balanced G2.5@20,000RPM
• BT MAS-403
• Shell Mill Holder with Coolant Holes ISO 3937 (Metric)
• Symmetrical Design, Dynamically Balanced for high RPM machining
• ADB Style Coolant with Ported Coolant Delivery
• Balanced G2.5 @ 20,000 RPM
• NOTE: Balance values are not guaranteed for holders where LF > 120 mm
• C-Adapter (ISO 26623-1)
• Vibration Dampened Shell Mill Holder ISO 3937 (Metric)
• Quick Change Holder
• Designed & Tuned for Standard Cutter Body weights
• Cannot be misaligned!
• C-Adapter (ISO 26623-1)
• Shell Mill Holder with Internal Coolant Holes ISO 3937 (Metric)
• Quick Change Holder
• DIN69871 Form ADB
• Shell Mill Holder with Internal Coolant Holes ISO 3937 (Metric)
• ADB Style Coolant with Ported Coolant Delivery
• Symmetrical Design
• Dynamically balanced for high RPM machining
• DIN69871-40 Balanced G2.5 @ 20,000 RPM
• DIN69871-50 Balanced G2.5 @ 15,000 RPM
• Balance values are not guaranteed where LF > 100 mm
• HSK-A (DIN 69893/A)
• Shell Mill Holder ISO 3937 (Metric)
• Extended Length for Long Reach Applications
• HSK-A (DIN 69893/A)
• Shell Mill Holder with Internal Coolant Holes ISO 3937 (Metric)
• Symmetrical Design for high RPM Machining
• Heavy Duty Drive Keys for higher torque transfer
• 4 Coolant Ports 90deg apart on Pilot Face
• Balanced G2.5@20,000RPM
• Modular Innofit System
• Anti Vibration Face Mill Adapter (Metric)
• Tuned to Standard Cutter Body Weight
• Cannot be Misaligned
• Coolant Through Center with Coolant Ports in Pilot Face
• For use with Innofit Master Shank Adapters
