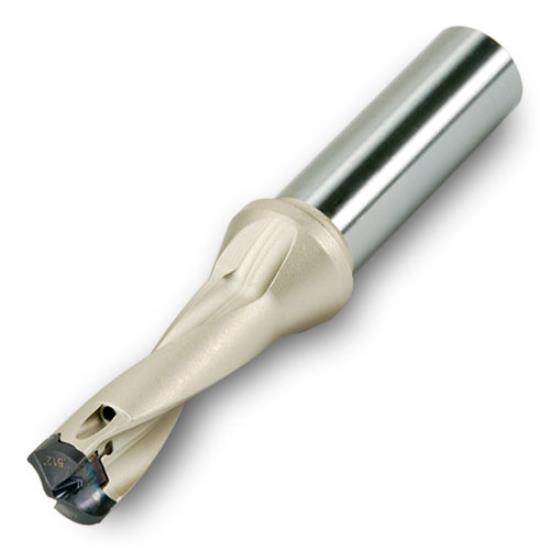

YD1800054C8R01 QwikTwist Body
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
3208473
3208473
Y070021C8R01
YD1800054C8R01
Weight: 0.871 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
Yd1800054c8r01 Qwiktwist Body Iso Item #Y070021c8r01 Ingersoll Part #3208473 Dcon - Shank Diameter : 1.0000. Lu - Usable Length: 2.13. Ls - Shank Length: 2.20. Ssc - Insert Seat Size: 18. Dcx - Cutting Diameter Max.: 0.7441 (18.9 Mm). Dcn - Cutting Diameter Min.: 0.7087 (18.0 Mm). Df - Flange Diameter : 1.26. Uldr - Usable Length Diameter Ratio: 3Ã?. Dcon - Shank Dia.: 1.0000. Lu - Usable Length: 2.13. Ls - Shank Length: 2.20. Ssc - Insert Seat Size: 18. Df - Flange Dia.: 1.26. Dcx - Cutting Dia. Max.: 0.7441 (18.9 Mm). Dcn - Cutting Dia. Min.: 0.7087 (18.0 Mm). Uldr - Usable Length Dia. Ratio: 3Ã?.
- Replaceable Tipped Drill Bodies
- L:D Ratio - 3:1
- Geometry: Positive
- Replaceable Tipped Drill Bodies
- L:D Ratio - 3:1
- Geometry: Positive
- **OBSOLETE PRODUCT LINE**
- Refer to the following for stocked alternative:
- GoldTwist, series TD-3xD Replaceable Tip Drill
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 3208473
