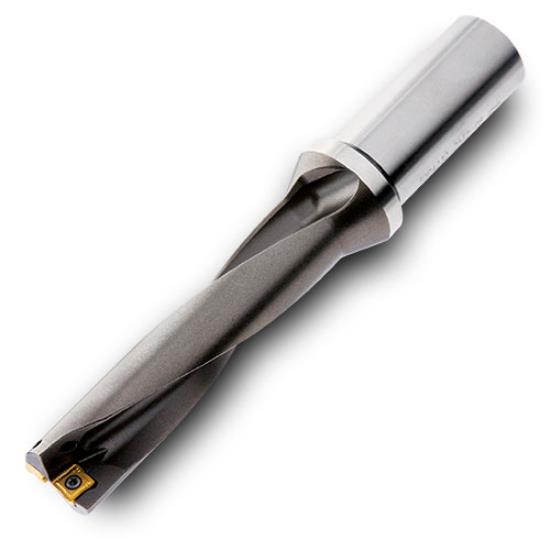

1.024" (26.00mm) Diameter QR0260078JFR00 QuadTwist Drill Body
This item is not available for shipping OR sale for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR.
3212437
3212437
QR0260078JFR00
QR0260078JFR00
Weight: 1.036 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description

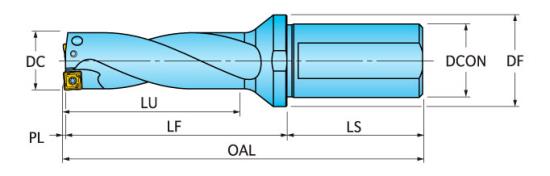

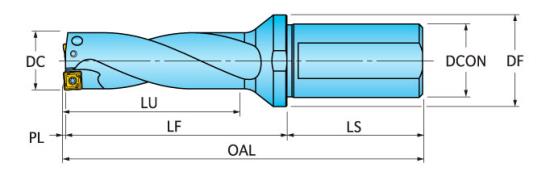

Qr0260078jfr00 Quadtwist Drill Body Iso Item #Qr0260078jfr00 Ingersoll Part #3212437 Dc - Cutting Diameter : 1.024 (26.00 Mm). Oal - Overall Length: 155.0 Mm. Zeff - Eff. Teeth: 1. Dcon - Shank Diameter : 25.00 Mm. Pl - Point Length: 1.24 Mm. Lu - Usable Length: 78.00 Mm. Lf - Functional Length: 99.00 Mm. Ls - Shank Length: 56.0 Mm. Znf - Face Insert Count: 2. Dcx - Cutting Diameter Max.: 26.00 Mm. Df - Flange Diameter : 32.00 Mm. Uldr - Usable Length Diameter Ratio: 3Ã?. Adjlx - Adjustment Limit Max.: 0.30 Mm. Dc - Cutting Dia.: 1.024 (26.00 Mm). Oal - Overall Length: 155.0 Mm. Zeff - Eff. Teeth: 1. Dcon - Shank Dia.: 25.00 Mm. Pl - Point Length: 1.24 Mm. Lu - Usable Length: 78.00 Mm. Lf - Functional Length: 99.00 Mm. Ls - Shank Length: 56.0 Mm. Znf - Face Insert Count: 2. Df - Flange Dia.: 32.00 Mm. Dcx - Cutting Dia. Max.: 26.00 Mm. Uldr - Usable Length Dia. Ratio: 3Ã?. Adjlx - Adjustment Limit Max.: 0.30 Mm.
- 012-50mm
- Universal Shank (Metric)
- Square Inserts
- Note: Brass coolant fitting should be ordered separately
- 012-50 mm
- Universal Shank (Metric)
- Square Inserts
- Note: Brass coolant fitting should be ordered separately
- Eccentric Sleeve (Metric)
- Used to enlarge or reduce metric nominal drill diameters
- Note: The pin, or allen wrench, required to facilitate radial adjustment of the sleeve is not included
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 3212437
- Cutter Diameter
- 1.024" (26.00mm)
- Overall Length
- 6.102"
