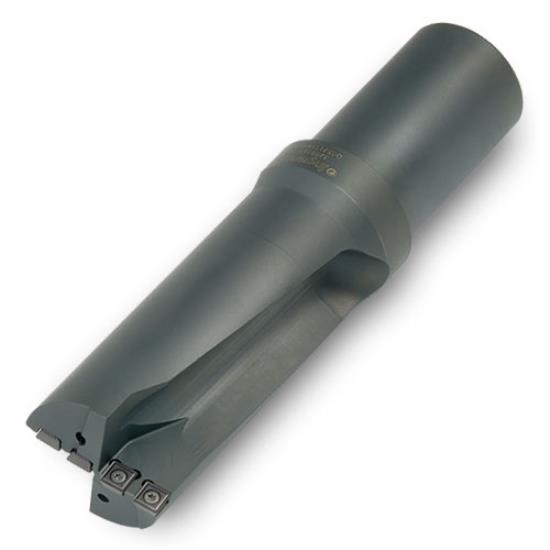

2.500" (63.50mm) Diameter Q0635254N8R01 QuadDrill+ Drill Body
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
3221051
3221051
Q0635254N8R01
Q0635254N8R01
Weight: 0.025 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description

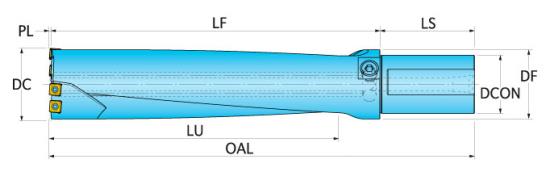

Q0635254n8r01 Quaddrill+ Drill Body Iso Item #Q0635254n8r01 Ingersoll Part #3221051 Dc - Cutting Diameter : 2.500 (63.50 Mm). Oal - Overall Length: 14.63. Zeff - Eff. Teeth: 1. Dcon - Shank Diameter : 2.0000. Lu - Usable Length: 10.00. Lf - Functional Length: 11.250. Ls - Shank Length: 3.25. Znf - Face Insert Count: 4. Dcx - Cutting Diameter Max.: 2.500. Df - Flange Diameter : 2.37. Uldr - Usable Length Diameter Ratio: 4Ã?. Dc - Cutting Dia.: 2.500 (63.50 Mm). Oal - Overall Length: 14.63. Zeff - Eff. Teeth: 1. Dcon - Shank Dia.: 2.0000. Lu - Usable Length: 10.00. Lf - Functional Length: 11.250. Ls - Shank Length: 3.25. Znf - Face Insert Count: 4. Df - Flange Dia.: 2.37. Dcx - Cutting Dia. Max.: 2.500. Uldr - Usable Length Dia. Ratio: 4Ã?.
- 02.125-3.250"
- Universal Shank
- Square Inserts
- 02.125-3.250"
- Universal Shank
- Square Inserts
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 3221051
- Cutter Diameter
- 2.500" (63.50mm)
- Overall Length
- 14.63"
