TSKNL16-4D TType Holder
This item is not available for shipping OR sale for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR.
3603868
3603868
TSKNL16-4D
TSKNL16-4D
Weight: 1.653 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
Tsknl16-4D Ttype Holder Iso Item #Tsknl16-4D Ingersoll Part #3603868 Csp - Coolant: No. Kapr - Cutting Edge Angle: 75. Lf - Functional Length: 6.0. Hf - Functional Height: 1.000. Hand - Hand: Left. H - Shank Height: 1.000. B - Shank Width: 1.000. Wf - Functional Width: 1.250. Csp - Coolant: No. Kapr - Cutting Edge Angle: 75. Lf - Functional Length: 6.0. Hf - Functional Height: 1.000. Hand - Hand: Left. H - Shank Height: 1.000. B - Shank Width: 1.000. Wf - Functional Width: 1.250. Miid - Master Insert Identification: Snga120408.

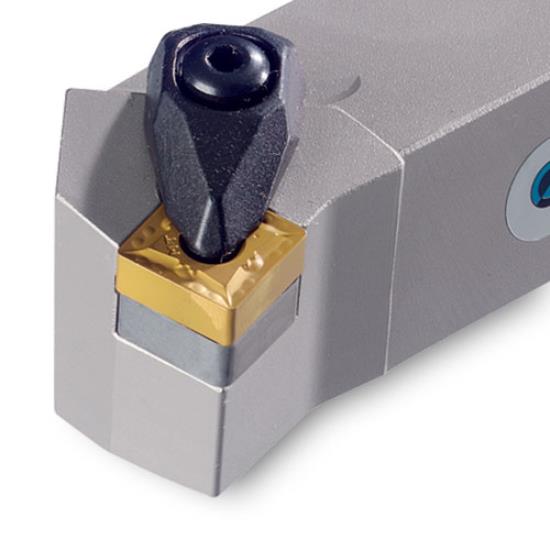

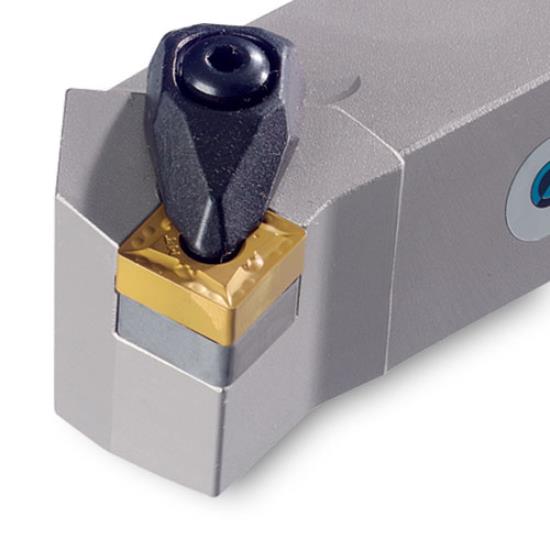

- T-type holder for external turning
- Accepts negative square inserts
- Negative Square SN_G/SN_M/SN_A Inserts
- 15deg Lead, Facing, Multidirectional Clamp
- 1.000" Shank
- Square CBN-tipped inserts
- Square ceramic inserts
- Square, PCD-tipped inserts
- Negative square ground inserts
- For medium
- Negative square flat top inserts
- For roughing applications
- Square ceramic inserts, pressed to size
- Negative square common-type inserts with chipbreaker for medium
- Negative square inserts
- For finishing applications
- Negative square inserts
- For medium applications
- Negative square inserts
- For roughing applications
- Negative square inserts
- For finishing applications
- Negative square inserts
- For roughing applications
- Negative square inserts
- For medium applications
- Negative square inserts
- For medium applications
- Negative square inserts
- For medium applications
- Negative square inserts
- For medium applications
- Negative square inserts
- For medium applications
- Negative square inserts
- For medium applications
- Negative square inserts
- For medium applications
- Negative square inserts
- For roughing applications
- Negative square inserts
- For semi-heavy applications
- Negative square inserts
- For semi-heavy applications
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 3603868
-
Coolant Through
- No
