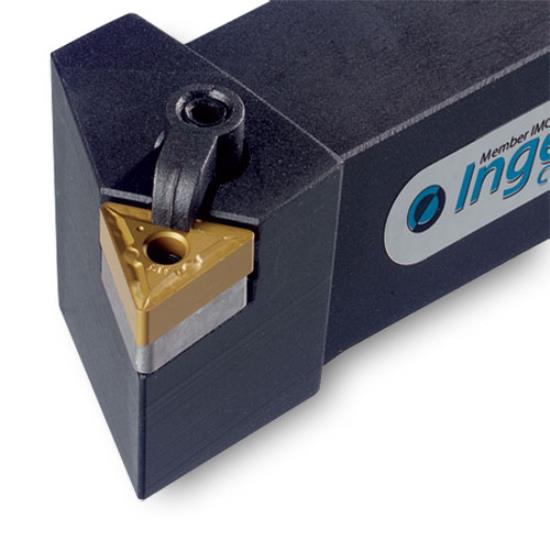

MTJNL16-4D Turning Holder
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
3671678
3671678
MTJNL16-4D
MTJNL16-4D
Brand: INGERSOLL CUTTING TOOLS
Product Description
Mtjnl16-4D Turning Holder Iso Item #Mtjnl16-4D Ingersoll Part #3671678 Csp - Coolant: No. Kapr - Cutting Edge Angle: 93. Lf - Functional Length: 6.0. Hf - Functional Height: 1.000. Hand - Hand: Left. H - Shank Height: 1.000. B - Shank Width: 1.000. Wf - Functional Width: 1.250. Csp - Coolant: No. Kapr - Cutting Edge Angle: 93. Lf - Functional Length: 6.0. Hf - Functional Height: 1.000. Hand - Hand: Left. H - Shank Height: 1.000. B - Shank Width: 1.000. Wf - Functional Width: 1.250. Miid - Master Insert Identification: Tnga220408.
- Multi-lock holder for external turning
- Accepts negative triangular inserts
- Negative Triangular TN_G/TN_M/TN_A Inserts
- -3deg Lead, OD Turning, Lock Pin Clamp
- .625-1.500" Shank
- Triangular ceramic inserts
- Triangular CBN tipped inserts
- Triangular CBN-Tipped Inserts
- Negative triangular ground inserts
- For medium applications
- Negative triangular flat-top inserts
- For roughing applications
- Negative triangular common-type inserts with chipbreaker
- For medium applications
- Negative triangular inserts
- For medium applications
- Negative triangular inserts
- For roughing applications
- Negative triangular inserts
- For finishing applications
- Negative triangular inserts
- For roughing applications
- Negative triangular inserts
- For medium applications
- Negative triangular inserts
- For medium applications
- Negative triangular inserts
- For medium applications
- Negative triangular inserts
- For medium applications
- Negative triangular inserts
- For medium applications
- Negative triangular inserts
- For roughing applications
- Negative triangular inserts
- For semi-heavy applications
- Negative triangular inserts
- For semi-heavy applications
