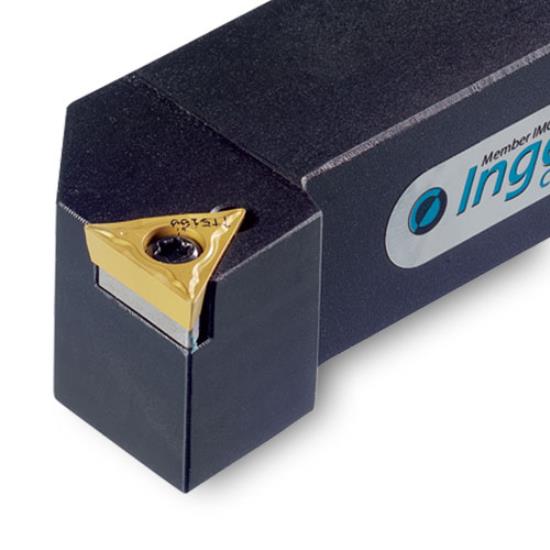

STFCR08-2J Turning Holder
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
3671689
3671689
STFCR08-2J
STFCR08-2J
Brand: INGERSOLL CUTTING TOOLS
Product Description
Stfcr08-2J Turning Holder Iso Item #Stfcr08-2J Ingersoll Part #3671689 Csp - Coolant: No. Kapr - Cutting Edge Angle: 91. Lf - Functional Length: 3.5. Hf - Functional Height: 0.500. Hand - Hand: Right. H - Shank Height: 0.500. B - Shank Width: 0.500. Wf - Functional Width: 0.625. Csp - Coolant: No. Kapr - Cutting Edge Angle: 91. Lf - Functional Length: 3.5. Hf - Functional Height: 0.500. Hand - Hand: Right. H - Shank Height: 0.500. B - Shank Width: 0.500. Wf - Functional Width: 0.625. Miid - Master Insert Identification: Tcmt110204mt.
- Screw-held holder for external turning
- Accepts positive 7 Degree clearance triangular inserts
- Postive Triangular TC_T/TC_W Inserts
- -1deg Lead, Facing, Screw Held
- .375-1.000" Shank
- Positive 7deg clearance triangular ground PCD tipped inserts
- Positive 7deg clearance triangle inserts
- For aluminum applications
- Ground and very sharp
- Positive 7deg clearance triangular ground inserts
- For high precision turning applications
- Positive 7deg clearance triangular CBN tipped inserts
- Positive 7deg Clearance Triangular CBN-Tipped Inserts
- Positive 7deg clearance triangular PCD tipped inserts
- Positive 7deg clearance triangular inserts
- For super finishing applications
- Positive 7deg clearance triangular inserts
- For finishing applications
- Positive 7deg clearance triangular inserts
- For semi-finishing to medium applications
- Positive 7deg clearance triangular inserts
- For medium applications
- Positive 7deg clearance triangular inserts
- For semi-finish and medium applications
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 3671689
-
Coolant Through
- No
