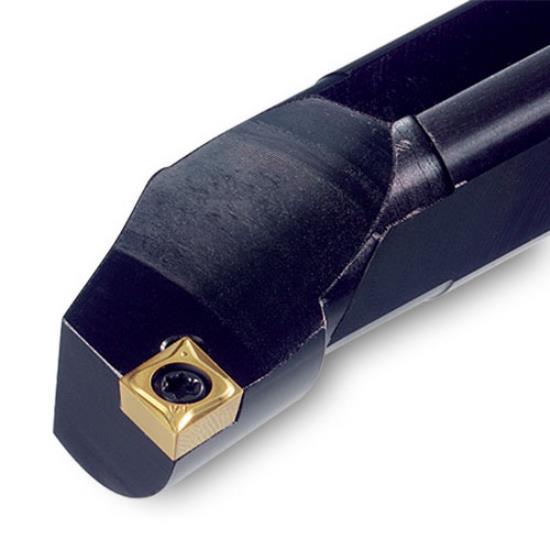

S06M-SCLCL-2 Turning Boring Bar
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
3672639
3672639
S06M-SCLCL-2
S06M-SCLCL-2
Brand: INGERSOLL CUTTING TOOLS
Product Description
S06m-Sclcl-2 Turning Boring Bar Iso Item #S06m-Sclcl-2 Ingersoll Part #3672639 Csp - Coolant: No. Kapr - Cutting Edge Angle: 95.0. Lf - Functional Length: 6.0. Hand - Hand: Left. Wf - Functional Width: 0.250. Dmin - Min. Bore Diameter : 0.500. Bmc - Body Material Code: Steel. Figure - Figure: 1. Dcon - Shank Diameter : 0.375. Csp - Coolant: No. Kapr - Cutting Edge Angle: 95.0. Lf - Functional Length: 6.0. Hand - Hand: Left. Wf - Functional Width: 0.250. Dmin - Min. Bore Dia.: 0.500. Bmc - Body Material Code: Steel. Figure - Figure: 1. Dcon - Shank Dia.: 0.375. Miid - Master Insert Identification: Ccmt060204mt.
- Screw-held boring bar
- Accepts positive 7 Degree clearance 80 Degree rhombic inserts
- Positive 80deg CC_T/CC_W Inserts
- -5deg Lead, Screw Held
- .375-1.500" Shank
- Positive 7deg clearance 80deg rhombic
- Ground inserts for small parts
- Positive 7deg clearance 80deg rhombic PCD tipped inserts
- Positive 7deg clearance 80deg rhombic
- Inserts for aluminum
- Ground and very sharp
- Positive 7deg clearance 80deg rhombic ground insert
- For high precision turning applications
- Positive 7deg clearance 80deg rhombic ground insert
- For low depth of cut on Swiss type lathes
- Positive 7deg clearance 80deg rhombic ground insert
- For medium depth of cut on Swiss type lathes
- Positive 7deg clearance 80deg rhombic CBN tipped inserts
- Positive 7deg Clearance 80deg Rhombic CBN-Tipped Inserts
- Positive 7deg clearance 80deg rhombic PCD tipped inserts
- Positive 7deg clearance 80deg rhombic inserts
- For super finishing applications
- Positive 7deg clearance 80deg rhombic inserts
- For finishing applications
- Positive 7deg clearance 80deg rhombic inserts
- For semi-finishing to medium applications
- Positive 7deg clearance 80deg rhombic inserts
- For medium to medium-rough applications
- Positive 7deg clearance 80deg rhombic inserts with PC chipbreaker
- Reduction Sleeve
- For use in holders with exchangeable adaption
- -B indicates non-threaded access hole
- C-type sleeves
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 3672639
-
Coolant Through
- No
