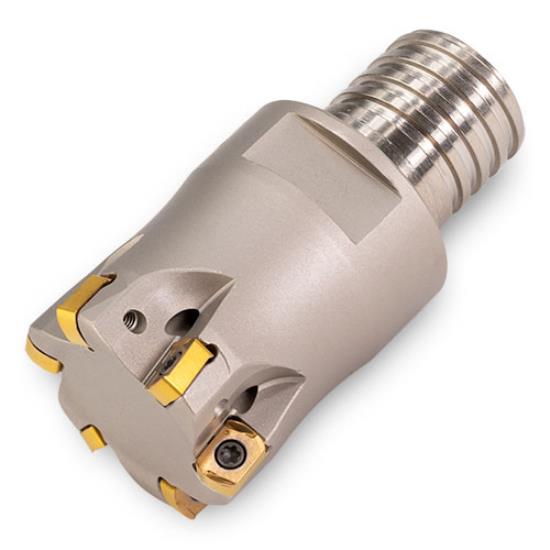

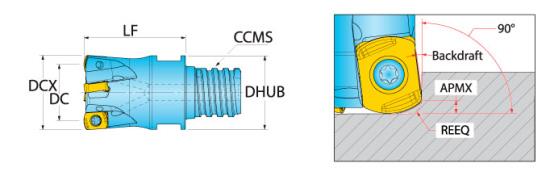

1Tg1b020022tsr00 Diposfeed End Mill Apmx - Depth Of Cut Max.: 0.50 Mm. Zeff - Eff. Teeth: 5. Csp - Coolant: Yes. Rmpx - Ramp Angle Max.: 0.50. Kapr - Cutting Edge Angle: 90.0. Lf - Functional Length: 22.0 Mm. Dhub - Hub Diameter : 18.3 Mm. Dcx - Cutting Diameter Max.: 20.00 Mm. Dc - Cutting Diameter : 15.50 Mm. Ccms - Connection Code Machine Side: Chip Surfer T12. Tq - Torque: 250 In Lb. Reeq - Program Radius Equivalent: 0.90 Mm.

• 010-25mm
• Chip Surfer Connection
• 4mm IC Insert with 4 indexes
• .5mm (.020") Max. depth of cut
• Two different insert edge preparations provide application flexibility
• Excellent hi-feed performance & economy!
