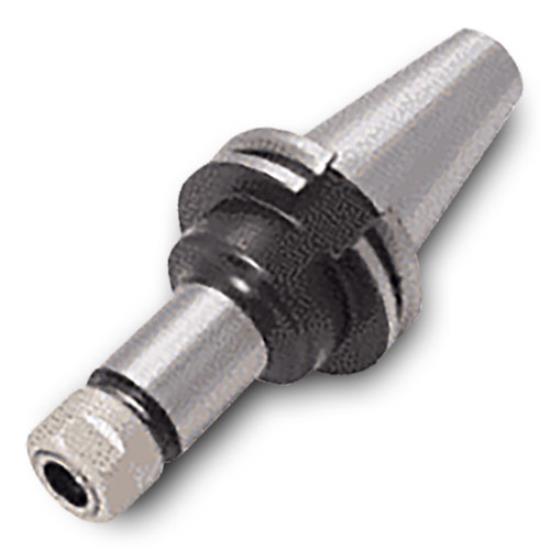

BT50FCER16X150 Rotary Tooling

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
BT50FCER16X150 Rotary Tooling BT50FCER16X150 Rotary Tooling
INGERSOLL CUTTING TOOLS
4509859
4509859
BT50FCER16X150
BT50FCER16X150
Brand: INGERSOLL CUTTING TOOLS
$676.00
(8% off)
$622.60
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

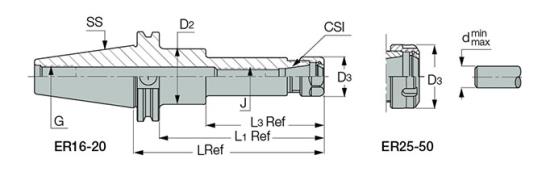

Bt50fcer16x150 Rotary Tooling Iso Item #Bt50fcer16x150 Ingersoll Part #4509859 Ss - Connection Code Machine Side: Bt50. L - Gauge Length: 150.00 Mm. D3 - Retention Nut Diameter : 28.00 Mm. J - Pre-Set Screw: M12. Csi - Connection Code Workpiece Side: Er16. L1 - Body Length 1: 113.50 Mm. D Min - Shank Diameter Min.: 0.022. D Max - Shank Diameter Max.: 0.396. Ss - Connection Code Machine Side: Bt50. L - Gauge Length: 150.00 Mm. D3 - Retention Nut Dia.: 28.00 Mm. J - Pre-Set Screw: M12. L1 - Body Length 1: 113.50 Mm. Csi - Connection Code Workpiece Side: Er16. D Min - Shank Dia. Min.: 0.022. D Max - Shank Dia. Max.: 0.396.

  • BT MAS-403 Face Contact
  • ER Collet Chuck DIN 6499
  • ADB Convertible through the center or through the flange coolant delivery
  • BT40 balanced G2.5@20,000RPM
  • BT50 balanced G2.5@15,000RPM
  • BT MAS-403 Face Contact
  • ER Collet Chuck DIN 6499
  • ADB Convertible through the center or through the flange coolant delivery
  • BT40 balanced G2.5@20,000RPM
  • BT50 balanced G2.5@15,000RPM
  • Solid ER in sizes 11, 16, 20, 25 & 32
  • Chip Surfer Connection
  • Neck Relief
  • Coolant Options
