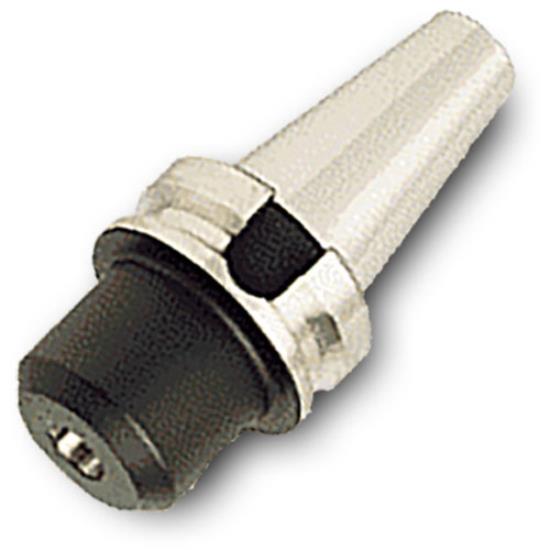

Bt50em20x100e Rotary Tooling Iso Item #Bt50em20x100e Ingersoll Part #4541628 Ss - Connection Code Machine Side: Bt50. L - Gauge Length: 100.00 Mm. J - Pre-Set Screw: M16. L1 - Body Length 1: 77.00 Mm. D2 - Bore Diameter : 20.00 Mm. D1 - Nose Diameter : 52.00 Mm. L Max - Throat Depth Max.: 59.00 Mm. L Min - Throat Depth Min.: 49.00 Mm. Ss - Connection Code Machine Side: Bt50. L - Gauge Length: 100.00 Mm. J - Pre-Set Screw: M16. D2 - Bore Dia.: 20.00 Mm. L1 - Body Length 1: 77.00 Mm. D1 - Nose Dia.: 52.00 Mm. L Max - Throat Depth Max.: 59.00 Mm. L Min - Throat Depth Min.: 49.00 Mm.

• BT MAS-403
• Whistle Notch End Mill/Drill Holder DIN6359/1835 Form E
• AD Style Coolant (coolant through the center)
• BT MAS-403
• Whistle Notch End Mill/Drill Holder DIN6359/1835 Form E
• AD Style Coolant (coolant through the center)
• 06.00 mm Min.
• Weldon Shank
• 8 mm Insert with 4 indexes
• 30deg, 45deg & 60deg Cutting Edge Angles
• 120deg, 90deg, 60deg Included Angles
• 05-20 mm
• Cylindrical and Weldon Shank (Metric)
• 4 Flute, 38deg Helix
• Corner chamfer
• Roughing applications
• 01-20 mm
• Weldon Shank (Metric)
• 4 Flute, 38deg Helix
• Variable pitch
• Corners: sharp and chamfer
• Grade: IN2005
• 06-20 mm
• Weldon Shank (Metric)
• 4 Flute, 35-37deg Helix
• Variable pitch, variable helix
• ECO style, short
• 06-20 mm
• Weldon Shank (Metric)
• 4 Flute, 35deg-37deg Helix
• Variable Pitch, Variable Helix
• ECO, Short
• 06-20 mm
• Weldon Shank (Metric)
• 4 Flute, 35-37deg Helix
• Variable pitch, variable helix
• 03-20 mm
• Weldon Shank (Metric)
• 4 Flute, 38deg Helix
• Variable pitch
• 06-25 mm
• Weldon Shank (Metric)
• 4 Flute, 45deg Helix
• 06-25 mm
• Weldon Shank (Metric)
• 4 Flute, 35deg-37deg Helix
• Variable Pitch, Variable Helix
• 04-20 mm
• Cylindrical & Weldon (Metric)
• 4 Flute, 35-37deg Helix
• Variable Helix, Variable Pitch
• Radial Relief Grind
• Cylindrical Weldon Shank (Metric)
• GFI ER Floating Reamer Collet Chuck DIN 6499
• Max PSi 725
• Radial Float .039"
• Maximum RPM 2000
• 58-60 HRc
• Cylindrical Shank (Metric)
• GYRO ER Collet Center Alignment Chuck
• Radial Adjustment .08" (2.0 mm)
• Angular Adjustment 1deg
