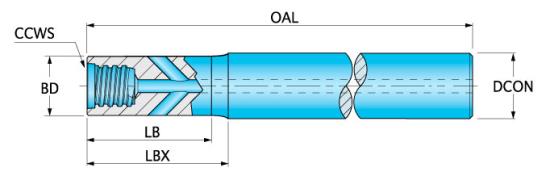

S016t10da018 Chipsurfer Component Iso Item #S016t10da018 Ingersoll Part #4558794 Oal - Overall Length: 100.00 Mm. Csp - Coolant: Yes. Bmc - Body Material Code: Steel. Bd - Body Diameter : 15.30 Mm. Lb - Body Length: 48.00 Mm. Cnsc - Coolant Entry Style Code: 1. Cxsc - Coolant Exit Style Code: 1, 3. Lbx - Body Length Max.: 50.00 Mm. Dcon - Shank Diameter : 16.00 Mm. Ccws - Connection Code Workpiece Side: Chip Surfer T10.

• Cylindrical Shank (Metric)
• Chip Surfer Connection
• Neck Relief
• Coolant options
• Shank modifications can be made by cutting off the back to desired length or turning back neck for more usable length
