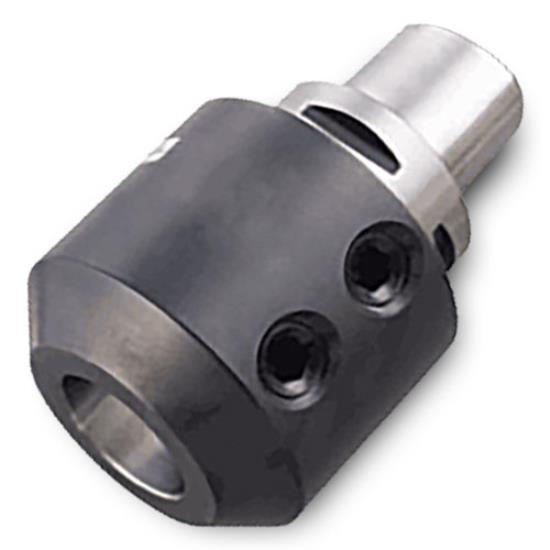

C3EM10X50 Rotary Tooling
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
4560088
4560088
C3EM10X50
C3EM10X50
Brand: INGERSOLL CUTTING TOOLS
Product Description

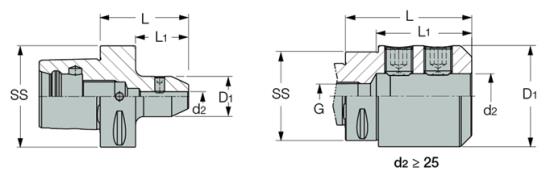

C3em10x50 Rotary Tooling Iso Item #C3em10x50 Ingersoll Part #4560088 Ss - Connection Code Machine Side: C3. L - Gauge Length: 50.00 Mm. L1 - Body Length 1: 30.00 Mm. D2 - Bore Diameter : 10.00 Mm. D1 - Nose Diameter : 35.00 Mm. Ss - Connection Code Machine Side: C3. L - Gauge Length: 50.00 Mm. D2 - Bore Dia.: 10.00 Mm. L1 - Body Length 1: 30.00 Mm. D1 - Nose Dia.: 35.00 Mm.
- C-Adapter (ISO 26623-1)
- METRIC Weldon Shank End Mill Holder
- Per DIN1835 Form B
- Quick Change Holder
- C-Adapter (ISO 26623-1)
- METRIC Weldon Shank End Mill Holder
- Per DIN1835 Form B
- Quick Change Holder
- 05-20 mm
- Cylindrical and Weldon Shank (Metric)
- 4 Flute, 38deg Helix
- Corner chamfer
- Roughing applications
- 01-20 mm
- Weldon Shank (Metric)
- 4 Flute, 38deg Helix
- Variable pitch
- Corners: sharp and chamfer
- Grade: IN2005
- 06-20 mm
- Weldon Shank (Metric)
- 4 Flute, 35-37deg Helix
- Variable pitch, variable helix
- ECO style, short
- 06-20 mm
- Weldon Shank (Metric)
- 4 Flute, 35deg-37deg Helix
- Variable Pitch, Variable Helix
- ECO, Short
- 06-20 mm
- Weldon Shank (Metric)
- 4 Flute, 35-37deg Helix
- Variable pitch, variable helix
- 03-20 mm
- Weldon Shank (Metric)
- 4 Flute, 38deg Helix
- Variable pitch
- 06-25 mm
- Weldon Shank (Metric)
- 4 Flute, 45deg Helix
- 04-12 mm
- Weldon Shank (Metric)
- 5 Flute, 36-38deg Helix
- Variable Pitch, Variable Helix
- 06-25 mm
- Weldon Shank (Metric)
- 4 Flute, 35deg-37deg Helix
- Variable Pitch, Variable Helix
- 04-20 mm
- Cylindrical & Weldon (Metric)
- 4 Flute, 35-37deg Helix
- Variable Helix, Variable Pitch
- Radial Relief Grind
- C-Adapter (ISO 26623-1)
- C-Adapter (ISO 26623-2)
- Quick Change Extension
- NOTE: Extensions do not have the Data Chip Provision slot
- C-Adapter (ISO 26623-1)
- C-Adapter (ISO 26623-2)
- Quick Change Reducer
- NOTE: Reducers do not have the Data Chip Provision slot
- Coolant Tube
- Required for use with all coolant through HSK and C-Adapter Spindles
- Optional Accessory Item - Sold separately
- Refer to machine manual prior to mounting C# Cooling Tube to confirm clamping drawbar has O-ring inside. Mount cooling tube by using the "Mount" side of the Cooling Tube C# Wrench (Sold separately)
- *See additional notes below
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 4560088
