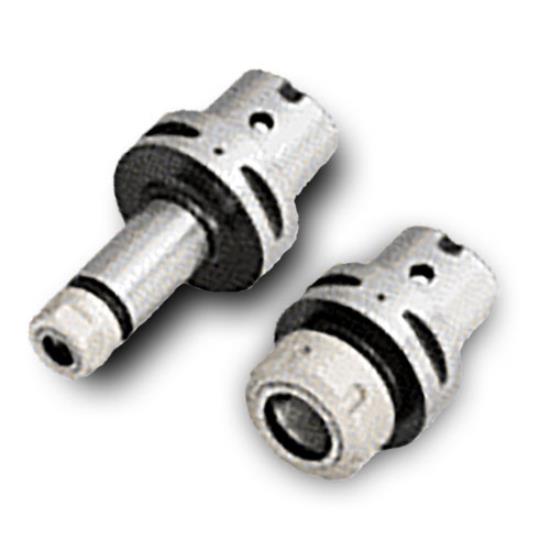

C6ER20X130 Rotary Tooling
This item is not available for shipping OR sale for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR.
4561356
4561356
C6ER20X130
C6ER20X130
Weight: 3.131 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
C6er20x130 Rotary Tooling Iso Item #C6er20x130 Ingersoll Part #4561356 Ss - Connection Code Machine Side: C6. L - Gauge Length: 130.00 Mm. D3 - Retention Nut Diameter : 34.00 Mm. J - Pre-Set Screw: M12. Csi - Connection Code Workpiece Side: Er20. L1 - Body Length 1: 108.00 Mm. D Min - Shank Diameter Min.: 1.00 Mm. D Max - Shank Diameter Max.: 13.00 Mm. Ss - Connection Code Machine Side: C6. L - Gauge Length: 130.00 Mm. D3 - Retention Nut Dia.: 34.00 Mm. J - Pre-Set Screw: M12. L1 - Body Length 1: 108.00 Mm. Csi - Connection Code Workpiece Side: Er20. D Min - Shank Dia. Min.: 1.00 Mm. D Max - Shank Dia. Max.: 13.00 Mm.
- C-Adapter (ISO 26623-1)
- ER Collet Chuck DIN 6499
- Quick Change Holder
- C-Adapter (ISO 26623-1)
- ER Collet Chuck DIN 6499
- Quick Change Holder
- Solid ER
- MultiSurfer Connection
- Neck Relief
- Coolant Options
- Strong and precise Pilot, Screw & Tri-Lobe Drive Connection
- Solid ER in sizes 11, 16, 20, 25 & 32
- Chip Surfer Connection
- Neck Relief
- Coolant Options
- BT MAS-403
- C-Adapter (ISO 26623-2)
- Quick Change Adapter
- CAT V-Flange
- C-Adapter (ISO 26623-2)
- Quick Change Adapter
- HSK (ISO 12164-3)
- C-Adapter (ISO 26623-2)
- Quick Change Adapter
- HSK-WH is also referred to as HSK-T
- Note: To enable clamping, coolant tube must be removed
- DIN69871 (SK) V-Flange
- C-Adapter (ISO 26623-2)
- Quick Change Adapter
- C-Adapter (ISO 26623-1)
- C-Adapter (ISO 26623-2)
- Quick Change Extension
- NOTE: Extensions do not have the Data Chip Provision slot
- C-Adapter (ISO 26623-1)
- C-Adapter (ISO 26623-2)
- Quick Change Reducer
- NOTE: Reducers do not have the Data Chip Provision slot
- Coolant Tube
- Required for use with all coolant through HSK and C-Adapter Spindles
- Optional Accessory Item - Sold separately
- Refer to machine manual prior to mounting C# Cooling Tube to confirm clamping drawbar has O-ring inside. Mount cooling tube by using the "Mount" side of the Cooling Tube C# Wrench (Sold separately)
- *See additional notes below
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 4561356
