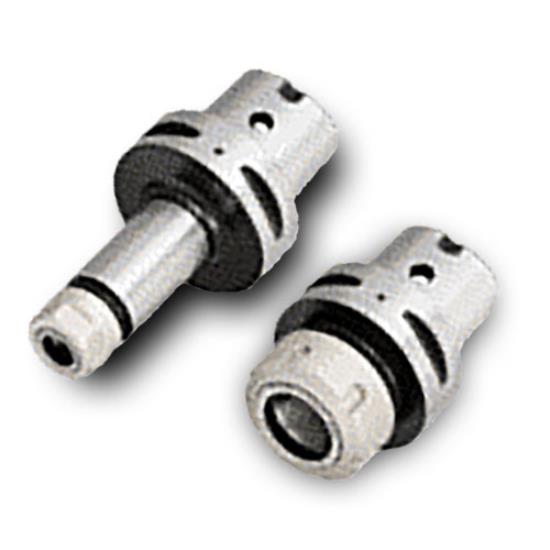

C6er25x100 Rotary Tooling Iso Item #C6er25x100 Ingersoll Part #4561359 Ss - Connection Code Machine Side: C6. L - Gauge Length: 100.00 Mm. D3 - Retention Nut Diameter : 42.00 Mm. J - Pre-Set Screw: M16. Csi - Connection Code Workpiece Side: Er25. L1 - Body Length 1: 78.00 Mm. D Min - Shank Diameter Min.: 1.00 Mm. D Max - Shank Diameter Max.: 16.00 Mm. Ss - Connection Code Machine Side: C6. L - Gauge Length: 100.00 Mm. D3 - Retention Nut Dia.: 42.00 Mm. J - Pre-Set Screw: M16. L1 - Body Length 1: 78.00 Mm. Csi - Connection Code Workpiece Side: Er25. D Min - Shank Dia. Min.: 1.00 Mm. D Max - Shank Dia. Max.: 16.00 Mm.

• C-Adapter (ISO 26623-1)
• ER Collet Chuck DIN 6499
• Quick Change Holder
• C-Adapter (ISO 26623-1)
• ER Collet Chuck DIN 6499
• Quick Change Holder
• Solid ER
• MultiSurfer Connection
• Neck Relief
• Coolant Options
• Strong and precise Pilot, Screw & Tri-Lobe Drive Connection
• ER Style Integral Collet
• TopOn Threaded Adaption Adapter
• JET2 Style Ported Coolant
• Max 1450 psi
• For use with standard straight shank tooling
• Solid ER in sizes 11, 16, 20, 25 & 32
• Chip Surfer Connection
• Neck Relief
• Coolant Options
• BT MAS-403
• C-Adapter (ISO 26623-2)
• Quick Change Adapter
• CAT V-Flange
• C-Adapter (ISO 26623-2)
• Quick Change Adapter
• HSK (ISO 12164-3)
• C-Adapter (ISO 26623-2)
• Quick Change Adapter
• HSK-WH is also referred to as HSK-T
• Note: To enable clamping, coolant tube must be removed
• DIN69871 (SK) V-Flange
• C-Adapter (ISO 26623-2)
• Quick Change Adapter
• C-Adapter (ISO 26623-1)
• C-Adapter (ISO 26623-2)
• Quick Change Extension
• NOTE: Extensions do not have the Data Chip Provision slot
• C-Adapter (ISO 26623-1)
• C-Adapter (ISO 26623-2)
• Quick Change Reducer
• NOTE: Reducers do not have the Data Chip Provision slot
• Coolant Tube
• Required for use with all coolant through HSK and C-Adapter Spindles
• Optional Accessory Item - Sold separately
• Refer to machine manual prior to mounting C# Cooling Tube to confirm clamping drawbar has O-ring inside. Mount cooling tube by using the "Mount" side of the Cooling Tube C# Wrench (Sold separately)
• *See additional notes below
