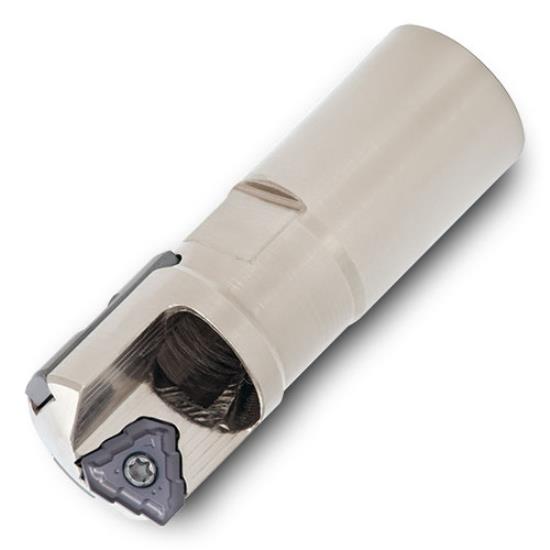

1.023" (25.98mm) Diameter TBTA-DT1.023SI1-22 Deep Drilling Indexable Heads

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
1.023" (25.98mm) Diameter TBTA-DT1.023SI1-22 Deep Drilling Indexable Heads 1.023" (25.98mm) Diameter TBTA-DT1.023SI1-22 Deep Drilling Indexable Heads
INGERSOLL CUTTING TOOLS
4820533
4820533
TBTA-DT1.023SI1-22
TBTA-DT1.023SI1-22
Weight: 0.001 LBS
Brand: INGERSOLL CUTTING TOOLS
$986.00
(14% off)
$851.61
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

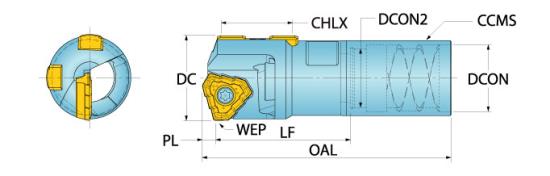

Tbta-Dt1.023Si1-22 Deep Drilling Indexable Heads Dc - Cutting Diameter : 1.023 (25.98 Mm). Oal - Overall Length: 2.70. Pl - Point Length: 0.145. Lf - Functional Length: 1.72. Znf - Face Insert Count: 1. Ccms - Connection Code Machine Side: Bta Si1-22. Dcon - Connection Diameter : 0.787. Dcon2 - Connection Diameter 2: 0.669. Thsts - Thread Starts: 1. Dc - Cutting Dia.: 1.023 (25.98 Mm). Oal - Overall Length: 2.70. Pl - Point Length: 0.145. Lf - Functional Length: 1.72. Znf - Face Insert Count: 1. Ccms - Connection Code Machine Side: Bta Si1-22. Dcon - Connection Dia.: 0.787. Dcon2 - Connection Dia. 2: 0.669. Thsts - Thread Starts: 1.

  • 0.629-1.102"
  • Single Tube System
  • Internal 1-Start Thread
  • 0.629-1.575" (16-40mm)
  • Single Tube System
  • Internal 1-Start Thread
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
4820533
Cutter Diameter
1.023" (25.98mm)
Overall Length
2.704"
