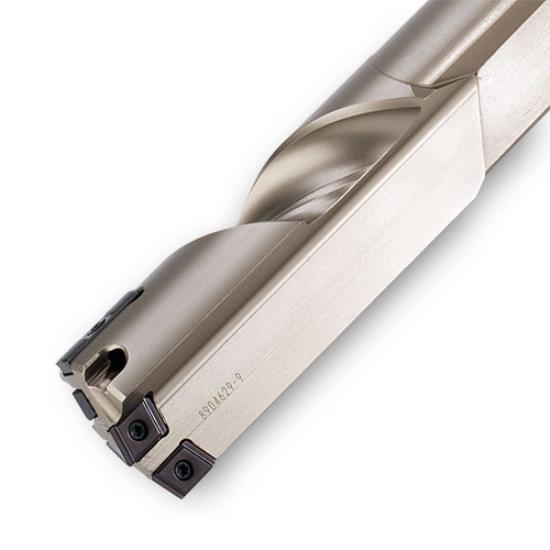

1.125" (28.58mm) Diameter GT28580715N6R01 DeepTrio Indexable Drill

This item is not available for shipping OR sale for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR.
1.125" (28.58mm) Diameter GT28580715N6R01 DeepTrio Indexable Drill 1.125" (28.58mm) Diameter GT28580715N6R01 DeepTrio Indexable Drill
INGERSOLL CUTTING TOOLS
4853420
4853420
GF28580715N6R01
GF28580715N6R01
Weight: 5.847 LBS
Brand: INGERSOLL CUTTING TOOLS
$1,460.00
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Gt28580715n6r01 Deeptrio Indexable Drill Iso Item #Gt28580715n6r01 Ingersoll Part #4853420 Dc - Cutting Diameter : 1.125 (28.58 Mm). Oal - Overall Length: 34.12. Dcon - Shank Diameter : 1.2500. Pl - Point Length: 0.102. Chlx - Cross-Hole Length Max.: 0.63. Lu - Usable Length: 28.65. Lf - Functional Length: 31.30. Ls - Shank Length: 2.36. Df - Flange Diameter : 1.77. Uldr - Usable Length Diameter Ratio: 25Ã?. Dc - Cutting Dia.: 1.125 (28.58 Mm). Oal - Overall Length: 34.12. Dcon - Shank Dia.: 1.2500. Pl - Point Length: 0.102. Chlx - Cross-Hole Length Max.: 0.63. Lu - Usable Length: 28.65. Lf - Functional Length: 31.30. Ls - Shank Length: 2.36. Df - Flange Dia.: 1.77. Uldr - Usable Length Dia. Ratio: 25Ã?.

  • 01.125-1.500"
  • Universal Shank
  • 01.103 -1.575"
  • Universal Shank
Shipping & Delivery Options
Illinois
  • UPS
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
4853420
Cutter Diameter
1.125" (28.58mm)
Overall Length
34.118"
