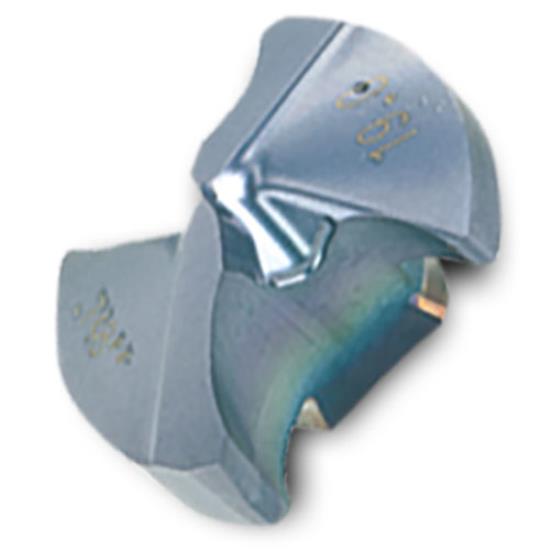

0.4252" (10.80mm) Diameter YAB1080R01 IN2005 QwikTwist Tip Carbide
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
5100175
5100175
NXXF42R02 IN2005
YAB1080R01 IN2005
Weight: 0.02 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
Yab1080r01 In2005 Qwiktwist Tip Carbide Iso Item #Nxxf42r02 In2005 Ingersoll Part #5100175 Dc - Cutting Diameter : 0.4252 (10.80 Mm). Pl - Point Length: 0.078. Lf - Functional Length: 0.131. Ssc - Insert Seat Size: 10. Lpr - Projection Length: 0.209. Sig - Point Angle: 140. Dc - Cutting Dia.: 0.4252 (10.80 Mm). Pl - Point Length: 0.078. Lf - Functional Length: 0.131. Ssc - Insert Seat Size: 10. Lpr - Projection Length: 0.209. Sig - Point Angle: 140.
- Qwik Twist 140 Degree Replaceable Tips
- Steel Geometry & General Purpose
- Grade IN2005
- Qwik Twist 140deg Replaceable Tips
- Steel Geometry & General Purpose
- Grade IN2005
- Slip Fit Drills to Fit Slip-Fit Chamfer Shanks
- L:D Ratio - 3.5:1
- Replaceable Tipped Drill Bodies
- L:D Ratio - 3:1
- Geometry: Positive
- **OBSOLETE PRODUCT LINE**
- Refer to the following for stocked alternative:
- GoldTwist, series TD-3xD Replaceable Tip Drill
- Replaceable Tipped Drill Bodies
- L:D Ratio - 5:1
- Geometry: Positive
- **OBSOLETE PRODUCT LINE**
- Refer to the following for stocked alternatives:
- GoldTwist, series TD-5xD Replaceable Tip Drill
- Replaceable Tipped Drill Bodies
- L:D - 8:1
- **OBSOLETE PROUCT LINE**
- Refer to the following for stocked alternatives:
- GoldTwist, series TD - 8xD Replaceable Tip Drill
- Tap Drill Chamfer Combo
- Combines Tap Drilling & Chamfering in One Operation
- Inch & Metric Univ Shanks
- **OBSOLETE PRODUCT LINE**
- Refer to the follwoing for stocked alternatives:
- GoldTwist, series TC
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 5100175
- Cutter Diameter
- 0.4252" (10.80mm)
- Tool Coating
- TiAlN
- Grade
- IN2005
