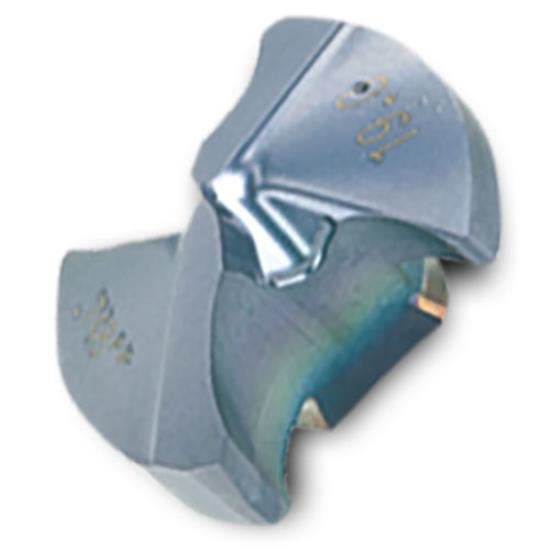

0.3543" (9.00mm) Diameter YAB0900R01 IN2005 QwikTwist Tip Carbide

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
0.3543" (9.00mm) Diameter YAB0900R01 IN2005 QwikTwist Tip Carbide 0.3543" (9.00mm) Diameter YAB0900R01 IN2005 QwikTwist Tip Carbide 0.3543" (9.00mm) Diameter YAB0900R01 IN2005 QwikTwist Tip Carbide 0.3543" (9.00mm) Diameter YAB0900R01 IN2005 QwikTwist Tip Carbide
INGERSOLL CUTTING TOOLS
5100215
5100215
NXXF35R02 IN2005
YAB0900R01 IN2005
Weight: 0.018 LBS
Brand: INGERSOLL CUTTING TOOLS
$122.00
(14% off)
$105.37
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Yab0900r01 In2005 Qwiktwist Tip Carbide Iso Item #Nxxf35r02 In2005 Ingersoll Part #5100215 Dc - Cutting Diameter : 0.3543 (9.00 Mm). Pl - Point Length: 0.065. Lf - Functional Length: 0.105. Ssc - Insert Seat Size: 9. Lpr - Projection Length: 0.169. Sig - Point Angle: 140. Dc - Cutting Dia.: 0.3543 (9.00 Mm). Pl - Point Length: 0.065. Lf - Functional Length: 0.105. Ssc - Insert Seat Size: 9. Lpr - Projection Length: 0.169. Sig - Point Angle: 140.

  • Qwik Twist 140 Degree Replaceable Tips
  • Steel Geometry & General Purpose
  • Grade IN2005
  • Qwik Twist 140deg Replaceable Tips
  • Steel Geometry & General Purpose
  • Grade IN2005
  • Slip Fit Drills to Fit Slip-Fit Chamfer Shanks
  • L:D Ratio - 3.5:1
  • Replaceable Tipped Drill Bodies
  • L:D Ratio - 3:1
  • Geometry: Positive
  • **OBSOLETE PRODUCT LINE**
  • Refer to the following for stocked alternative:
  • GoldTwist, series TD-3xD Replaceable Tip Drill
  • Replaceable Tipped Drill Bodies
  • L:D Ratio - 5:1
  • Geometry: Positive
  • **OBSOLETE PRODUCT LINE**
  • Refer to the following for stocked alternatives:
  • GoldTwist, series TD-5xD Replaceable Tip Drill
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5100215
Cutter Diameter
0.3543" (9.00mm)
Tool Coating
TiAlN
Grade
IN2005
