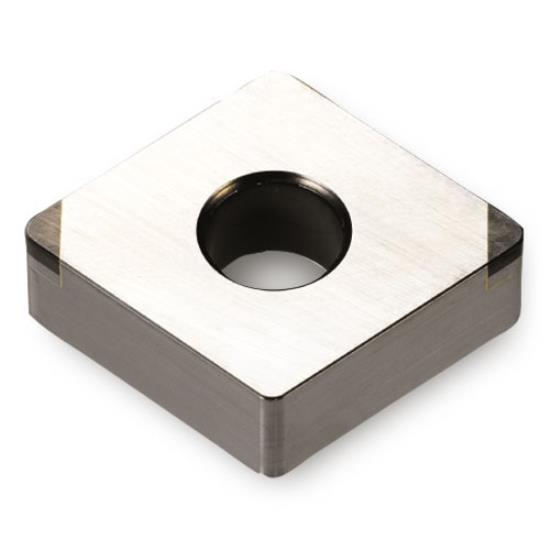

CNGA433WZ-LS2 / CNGA120412WZ-LS2 Grade TB650 CBN Negative Turning Insert With Hole, Uncoated with Flat Top & Wiper for Continuous, Light Interrupted Turning Hardened Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
CNGA433WZ-LS2 / CNGA120412WZ-LS2 Grade TB650 CBN Negative Turning Insert With Hole, Uncoated with Flat Top & Wiper for Continuous, Light Interrupted Turning Hardened Steel CNGA433WZ-LS2 / CNGA120412WZ-LS2 Grade TB650 CBN Negative Turning Insert With Hole, Uncoated with Flat Top & Wiper for Continuous, Light Interrupted Turning Hardened Steel CNGA433WZ-LS2 / CNGA120412WZ-LS2 Grade TB650 CBN Negative Turning Insert With Hole, Uncoated with Flat Top & Wiper for Continuous, Light Interrupted Turning Hardened Steel CNGA433WZ-LS2 / CNGA120412WZ-LS2 Grade TB650 CBN Negative Turning Insert With Hole, Uncoated with Flat Top & Wiper for Continuous, Light Interrupted Turning Hardened Steel
INGERSOLL CUTTING TOOLS
5401580
5401580
CNGA120412WZ-LS2 TB650
CNGA433WZ-LS2 TB650
Weight: 0.055 LBS
Brand: INGERSOLL CUTTING TOOLS
$99.00
(8% off)
$91.18
each
Add To My Favorites
Pricing Details
Quantity Price
1-4 $91.18/each
5+ $52.47/each
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Cnga433wz-Ls2 / Cnga120412wz-Ls2 Is A Cnga 80° Rhombic Cbn Negative Turning Insert In Grade Tb650. High Wear-Resistant Cbn Grade With Moderate Fracture Toughness For Hardened Steels Above 45 Hrc And Light Interrupted Cuts. Use It For Hard Turning Applications Such As Hardened Steel, Tool Steel, Case-Hardened Steel And Other Hard Materials. This Insert Provides 2 Usable Cbn-Tipped Edges With Short Cbn Tip Design And Chamfer, Hone Edge Preparation. Cbn Is Used When Hardened Materials Or Abrasive Cast Irons Generate Heat And Wear That Standard Carbide Cannot Handle. The Wiper Geometry Is Used To Improve Surface Finish And Productivity In Hard Turning Or Cast Iron Finishing. Key Dimensions Include 0.500" Ic, 0.187" Thickness, 0.047" Corner Radius. Ingersoll Part # 5401580

  • CNGA433WZ-LS2 / CNGA120412WZ-LS2 TB650 CBN turning insert
  • Cubic boron nitride cutting edge for hard turning and abrasive materials
  • High wear-resistant CBN grade with moderate fracture toughness for hardened steels above 45 HRC and light interrupted cuts
  • Intended for Hardened Steel
  • Application: Continuous, Light Interrupted Turning
  • Wiper geometry for controlled chip formation
  • 2 usable CBN-tipped edges; short CBN tip design
  • Chamfer, Hone edge preparation
  • 0.500" IC, 0.187" thickness, 0.047" corner radius
  • Recommended for ISO H10-H20; hardened steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory Stock
12
Add to Cart

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5401580
ISO Part Number
CNGA120412WZ-LS2
ANSI Part Number
CNGA433WZ-LS2
Radius Size
0.047"
Thickness
0.187"
Material
Hardened Steel
Tool Coating
Uncoated
Tool Substrate Material
CBN
Primary Application
Continuous, Light Interrupted Turning
Hand
Neutral
Edge Preparation
Chamfer, Hone
Edge Style
Short CBN Tip
Included Angle
80°
Material Food Group
H10-H20
Grade
TB650
Series
CNGA
Style
With Hole
Model
T-Turn
Size
433
Type
Negative Turning Insert
Inscribed Circle
0.500"
Chip Breaker
Wiper
Number Of Points
2
