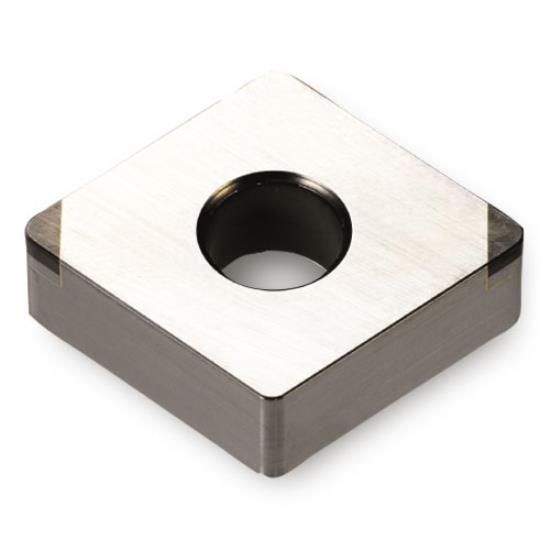

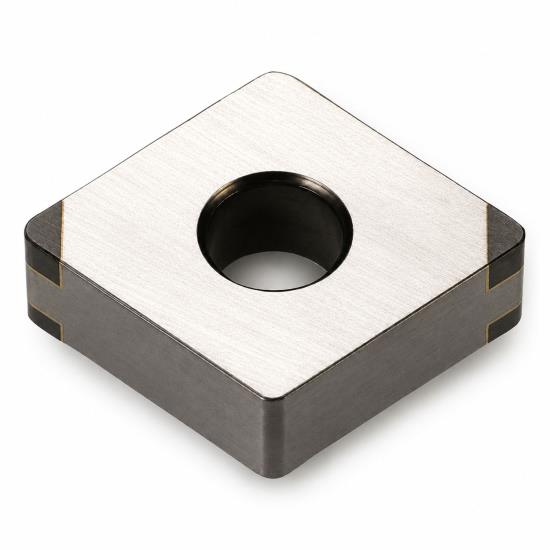

CNGA432WZ-LS4 / CNGA120408WZ-LS4 Grade TB610 CBN Negative Turning Insert With Hole, Uncoated with Flat Top & Wiper for High Speed Finish Turning Hardened Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
CNGA432WZ-LS4 / CNGA120408WZ-LS4 Grade TB610 CBN Negative Turning Insert With Hole, Uncoated with Flat Top & Wiper for High Speed Finish Turning Hardened Steel CNGA432WZ-LS4 / CNGA120408WZ-LS4 Grade TB610 CBN Negative Turning Insert With Hole, Uncoated with Flat Top & Wiper for High Speed Finish Turning Hardened Steel CNGA432WZ-LS4 / CNGA120408WZ-LS4 Grade TB610 CBN Negative Turning Insert With Hole, Uncoated with Flat Top & Wiper for High Speed Finish Turning Hardened Steel
INGERSOLL CUTTING TOOLS
5402979
5402979
CNGA120408WZ-LS4 TB610
CNGA432WZ-LS4 TB610
Weight: 0.055 LBS
Brand: INGERSOLL CUTTING TOOLS
$163.00
(8% off)
$150.12
each
Add To My Favorites
Pricing Details
Quantity Price
1-4 $150.12/each
5+ $86.39/each
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Cnga432wz-Ls4 / Cnga120408wz-Ls4 Uses Grade Tb610 Cubic Boron Nitride For High Speed Finish Turning In Hardened Steel. Wear-Resistant Cbn Grade For Continuous To Light Interrupted Machining Of Hardened Steel, Alloy Steel, Tool Steel And Case-Hardened Steel. Use It For Hard Turning Applications Such As Hardened Steel, Tool Steel, Case-Hardened Steel And Other Hard Materials. This Insert Provides 4 Usable Cbn-Tipped Edges With Short Cbn Tip Design And Chamfer, Hone Edge Preparation. This Insert Is Designed For Hard-Material Turning, High-Speed Cast Iron Work And Applications Requiring Excellent Hot Hardness, Wear Resistance And Stable Surface Finish. The Wiper Geometry Is Used To Improve Surface Finish And Productivity In Hard Turning Or Cast Iron Finishing. Key Dimensions Include 0.500" Ic, 0.187" Thickness, 0.031" Corner Radius. Ingersoll Part # 5402979

  • CNGA432WZ-LS4 / CNGA120408WZ-LS4 TB610 CBN turning insert
  • Cubic boron nitride cutting edge for hard turning and abrasive materials
  • Wear-resistant CBN grade for continuous to light interrupted machining of hardened steel, alloy steel, tool steel and case-hardened steel
  • Intended for Hardened Steel
  • Application: High Speed Finish Turning
  • Wiper geometry for controlled chip formation
  • 4 usable CBN-tipped edges; short CBN tip design
  • Chamfer, Hone edge preparation
  • 0.500" IC, 0.187" thickness, 0.031" corner radius
  • Recommended for ISO H05-H10; hardened steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5402979
ISO Part Number
CNGA120408WZ-LS4
ANSI Part Number
CNGA432WZ-LS4
Radius Size
0.031"
Thickness
0.187"
Material
Hardened Steel
Tool Coating
Uncoated
Tool Substrate Material
CBN
Primary Application
High Speed Finish Turning
Hand
Neutral
Edge Preparation
Chamfer, Hone
Edge Style
Short CBN Tip
Included Angle
80°
Material Food Group
H05-H10
Grade
TB610
Series
CNGA
Style
With Hole
Model
T-Turn
Size
432
Type
Negative Turning Insert
Inscribed Circle
0.500"
Chip Breaker
Wiper
Number Of Points
4
