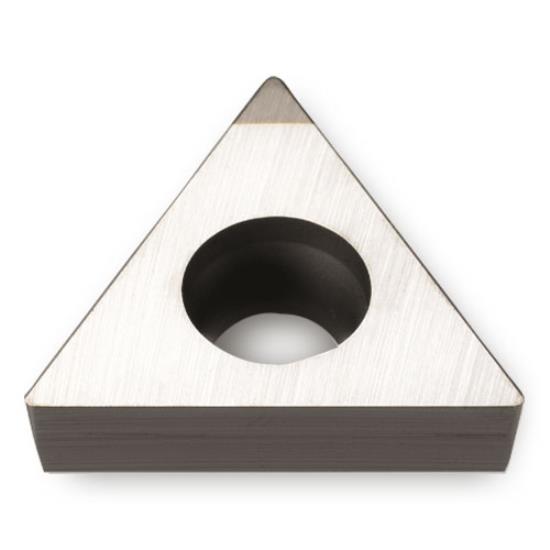

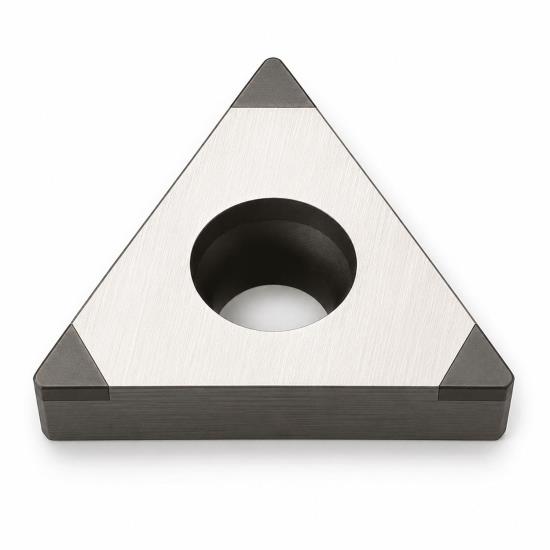

TCGW32.52LS3 / TCGW16T308LS3 Grade TB610 CBN Positive Turning Insert With Hole, Uncoated with Flat Top for High Speed Finish Turning Hardened Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
TCGW32.52LS3 / TCGW16T308LS3 Grade TB610 CBN Positive Turning Insert With Hole, Uncoated with Flat Top for High Speed Finish Turning Hardened Steel TCGW32.52LS3 / TCGW16T308LS3 Grade TB610 CBN Positive Turning Insert With Hole, Uncoated with Flat Top for High Speed Finish Turning Hardened Steel TCGW32.52LS3 / TCGW16T308LS3 Grade TB610 CBN Positive Turning Insert With Hole, Uncoated with Flat Top for High Speed Finish Turning Hardened Steel
INGERSOLL CUTTING TOOLS
5403008
5403008
TCGW16T308LS3 TB610
TCGW32.52LS3 TB610
Weight: 0.028 LBS
Brand: INGERSOLL CUTTING TOOLS
$134.00
(8% off)
$123.41
each
Add To My Favorites
Pricing Details
Quantity Price
1-4 $123.41/each
5+ $71.02/each
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Tcgw32.52Ls3 / Tcgw16t308ls3 Is A Tcgw Triangular Cbn Positive Turning Insert In Grade Tb610. Wear-Resistant Cbn Grade For Continuous To Light Interrupted Machining Of Hardened Steel, Alloy Steel, Tool Steel And Case-Hardened Steel. Use It For Hard Turning Applications Such As Hardened Steel, Tool Steel, Case-Hardened Steel And Other Hard Materials. This Insert Provides 3 Usable Cbn-Tipped Edges With Short Cbn Tip Design And Chamfer, Hone Edge Preparation. Cbn Is Used When Hardened Materials Or Abrasive Cast Irons Generate Heat And Wear That Standard Carbide Cannot Handle. The No-Chipbreaker Style Is A Strong Choice For Predictable Hard Turning, Cast Iron Machining And Applications Where Edge Security Is More Important Than Aggressive Chip Forming. Key Dimensions Include 0.375" Ic, 0.156" Thickness, 0.031" Corner Radius. Ingersoll Part # 5403008

  • TCGW32.52LS3 / TCGW16T308LS3 TB610 CBN turning insert
  • Cubic boron nitride cutting edge for hard turning and abrasive materials
  • Wear-resistant CBN grade for continuous to light interrupted machining of hardened steel, alloy steel, tool steel and case-hardened steel
  • Intended for Hardened Steel
  • Application: High Speed Finish Turning
  • No-chipbreaker geometry for strong cutting-edge support
  • 3 usable CBN-tipped edges; short CBN tip design
  • Chamfer, Hone edge preparation
  • 0.375" IC, 0.156" thickness, 0.031" corner radius
  • Recommended for ISO H05-H10; hardened steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5403008
ISO Part Number
TCGW16T308LS3
ANSI Part Number
TCGW32.52LS3
Radius Size
0.031"
Thickness
0.156"
Material
Hardened Steel
Tool Coating
Uncoated
Tool Substrate Material
CBN
Primary Application
High Speed Finish Turning
Angle Per Side
7°
Hand
Neutral
Edge Preparation
Chamfer, Hone
Edge Style
Short CBN Tip
Included Angle
60°
Material Food Group
H05-H10
Grade
TB610
Series
TCGW
Style
With Hole
Model
T-Turn
Size
32.52
Type
Positive Turning Insert
Inscribed Circle
0.375"
Chip Breaker
No
Number Of Points
3
