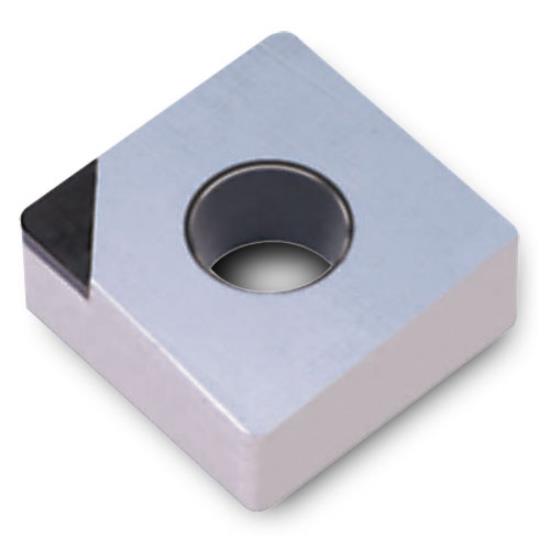

SNGA432LN / SNGA120408LN Grade TB670 CBN Negative Turning Insert With Hole, Uncoated with Flat Top for Continuous, Heavy Interrupted Turning Hardened Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
SNGA432LN / SNGA120408LN Grade TB670 CBN Negative Turning Insert With Hole, Uncoated with Flat Top for Continuous, Heavy Interrupted Turning Hardened Steel SNGA432LN / SNGA120408LN Grade TB670 CBN Negative Turning Insert With Hole, Uncoated with Flat Top for Continuous, Heavy Interrupted Turning Hardened Steel
INGERSOLL CUTTING TOOLS
5403072
5403072
SNGA120408LN TB670
SNGA432LN TB670
Weight: 0.009 LBS
Brand: INGERSOLL CUTTING TOOLS
$99.00
(8% off)
$91.18
each
Add To My Favorites
Pricing Details
Quantity Price
1-4 $91.18/each
5+ $52.47/each
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Snga432ln / Snga120408ln Is A Snga Square Cbn Negative Turning Insert In Grade Tb670. Tough Cbn Grade For General Hard Turning, Continuous To Interrupted Cuts, Alloy Steel, Tool Steel, Case-Hardened Steel And Chilled Cast Iron. Use It For Hard Turning Applications Such As Hardened Steel, Tool Steel, Case-Hardened Steel And Other Hard Materials. This Insert Provides 1 Usable Cbn-Tipped Edge With Long Cbn Tip Design And Chamfer, Hone Edge Preparation. Cbn Is Used When Hardened Materials Or Abrasive Cast Irons Generate Heat And Wear That Standard Carbide Cannot Handle. The No-Chipbreaker Style Is A Strong Choice For Predictable Hard Turning, Cast Iron Machining And Applications Where Edge Security Is More Important Than Aggressive Chip Forming. Key Dimensions Include 0.500" Ic, 0.187" Thickness, 0.031" Corner Radius. Ingersoll Part # 5403072

  • SNGA432LN / SNGA120408LN TB670 CBN turning insert
  • Cubic boron nitride cutting edge for hard turning and abrasive materials
  • Tough CBN grade for general hard turning, continuous to interrupted cuts, alloy steel, tool steel, case-hardened steel and chilled cast iron
  • Intended for Hardened Steel
  • Application: Continuous, Heavy Interrupted Turning
  • No-chipbreaker geometry for strong cutting-edge support
  • 1 usable CBN-tipped edge; long CBN tip design
  • Chamfer, Hone edge preparation
  • 0.500" IC, 0.187" thickness, 0.031" corner radius
  • Recommended for ISO H20-H30; hardened steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5403072
ISO Part Number
SNGA120408LN
ANSI Part Number
SNGA432LN
Radius Size
0.031"
Thickness
0.187"
Material
Hardened Steel
Tool Coating
Uncoated
Tool Substrate Material
CBN
Primary Application
Continuous, Heavy Interrupted Turning
Hand
Neutral
Edge Preparation
Chamfer, Hone
Edge Style
Long CBN Tip
Included Angle
90°
Material Food Group
H20-H30
Grade
TB670
Series
SNGA
Style
With Hole
Model
T-Turn
Size
432
Type
Negative Turning Insert
Inscribed Circle
0.500"
Chip Breaker
No
Number Of Points
1
