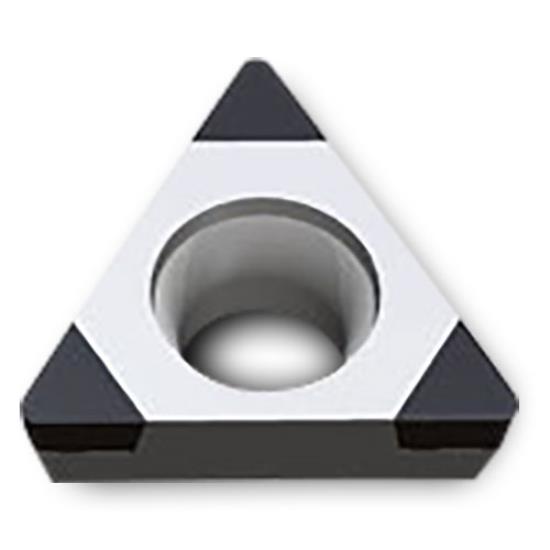

TPGW731LS3 / TPGW090204LS3 Grade TB670 CBN Positive Turning Insert With Hole, Uncoated with Flat Top for Continuous, Heavy Interrupted Turning Hardened Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
TPGW731LS3 / TPGW090204LS3 Grade TB670 CBN Positive Turning Insert With Hole, Uncoated with Flat Top for Continuous, Heavy Interrupted Turning Hardened Steel TPGW731LS3 / TPGW090204LS3 Grade TB670 CBN Positive Turning Insert With Hole, Uncoated with Flat Top for Continuous, Heavy Interrupted Turning Hardened Steel TPGW731LS3 / TPGW090204LS3 Grade TB670 CBN Positive Turning Insert With Hole, Uncoated with Flat Top for Continuous, Heavy Interrupted Turning Hardened Steel TPGW731LS3 / TPGW090204LS3 Grade TB670 CBN Positive Turning Insert With Hole, Uncoated with Flat Top for Continuous, Heavy Interrupted Turning Hardened Steel
INGERSOLL CUTTING TOOLS
5403094
5403094
TPGW090204LS3 TB670
TPGW731LS3 TB670
Weight: 0.022 LBS
Brand: INGERSOLL CUTTING TOOLS
$134.00
(8% off)
$123.41
each
Add To My Favorites
Pricing Details
Quantity Price
1-4 $123.41/each
5+ $71.02/each
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Tpgw731ls3 / Tpgw090204ls3 Uses Grade Tb670 Cubic Boron Nitride For Continuous, Heavy Interrupted Turning In Hardened Steel. Tough Cbn Grade For General Hard Turning, Continuous To Interrupted Cuts, Alloy Steel, Tool Steel, Case-Hardened Steel And Chilled Cast Iron. Use It For Hard Turning Applications Such As Hardened Steel, Tool Steel, Case-Hardened Steel And Other Hard Materials. This Insert Provides 3 Usable Cbn-Tipped Edges With Short Cbn Tip Design And Chamfer, Hone Edge Preparation. This Insert Is Designed For Hard-Material Turning, High-Speed Cast Iron Work And Applications Requiring Excellent Hot Hardness, Wear Resistance And Stable Surface Finish. The No-Chipbreaker Style Is A Strong Choice For Predictable Hard Turning, Cast Iron Machining And Applications Where Edge Security Is More Important Than Aggressive Chip Forming. Key Dimensions Include 0.219" Ic, 0.094" Thickness, 0.016" Corner Radius. Ingersoll Part # 5403094

  • TPGW731LS3 / TPGW090204LS3 TB670 CBN turning insert
  • Cubic boron nitride cutting edge for hard turning and abrasive materials
  • Tough CBN grade for general hard turning, continuous to interrupted cuts, alloy steel, tool steel, case-hardened steel and chilled cast iron
  • Intended for Hardened Steel
  • Application: Continuous, Heavy Interrupted Turning
  • No-chipbreaker geometry for strong cutting-edge support
  • 3 usable CBN-tipped edges; short CBN tip design
  • Chamfer, Hone edge preparation
  • 0.219" IC, 0.094" thickness, 0.016" corner radius
  • Recommended for ISO H20-H30; hardened steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory Stock
3
Add to Cart

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5403094
ISO Part Number
TPGW090204LS3
ANSI Part Number
TPGW731LS3
Radius Size
0.016"
Thickness
0.094"
Material
Hardened Steel
Tool Coating
Uncoated
Tool Substrate Material
CBN
Primary Application
Continuous, Heavy Interrupted Turning
Angle Per Side
11°
Hand
Neutral
Edge Preparation
Chamfer, Hone
Edge Style
Short CBN Tip
Included Angle
60°
Material Food Group
H20-H30
Grade
TB670
Series
TPGW
Style
With Hole
Model
T-Turn
Size
731
Type
Positive Turning Insert
Inscribed Circle
0.219"
Chip Breaker
No
Number Of Points
3
