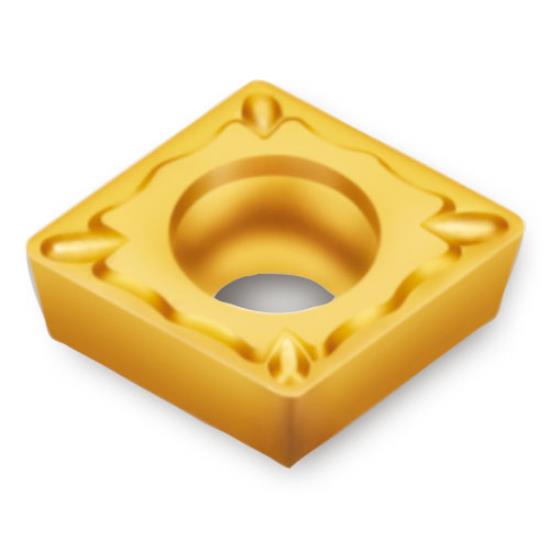

CPMT322FG / CPMT090308FG Grade TT5100 Carbide Positive Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with FG Chipbreaker for Finish to Medium-Light Turning Stainless, Steel, HRSA

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
CPMT322FG / CPMT090308FG Grade TT5100 Carbide Positive Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with FG Chipbreaker for Finish to Medium-Light Turning Stainless, Steel, HRSA CPMT322FG / CPMT090308FG Grade TT5100 Carbide Positive Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with FG Chipbreaker for Finish to Medium-Light Turning Stainless, Steel, HRSA CPMT322FG / CPMT090308FG Grade TT5100 Carbide Positive Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with FG Chipbreaker for Finish to Medium-Light Turning Stainless, Steel, HRSA CPMT322FG / CPMT090308FG Grade TT5100 Carbide Positive Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with FG Chipbreaker for Finish to Medium-Light Turning Stainless, Steel, HRSA
INGERSOLL CUTTING TOOLS
5515097
5515097
CPMT090308FG TT5100
CPMT322FG TT5100
Weight: 0.009 LBS
Brand: INGERSOLL CUTTING TOOLS
$19.25
(47% off)
$10.20
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Cpmt322fg / Cpmt090308fg Is A Positive Turning Insert With Hole From The Iso Turn Turning Insert Line. This Cpmt Insert Is Manufactured In Grade Tt5100 Carbide Using Tin+Ticn+Al2o3+Tin Coated Finish And The Fg Chipbreaker For Finish To Medium-Light Turning. It Provides 2 Indexable Cutting Corners In An 80° Rhombic Geometry. Key Dimensions Include 0.031" Corner Radius, 0.375" Inscribed Circle, 0.125" Thickness. Recommended Workpiece Materials Include Stainless Steel, Steel And Heat-Resistant Super Alloys (Hrsa). Tt5100 Is A Tough Cvd Carbide Grade For Mild Steel, Low Carbon Steel And Low Carbon Alloy Steel Where Sticking And Edge Chipping Can Be A Problem. Iso Range M15-M35, P20-P40, S15-S35. Fg Is A Finish To Semi-Finish Chipbreaker With Low Cutting Forces For Steel, Stainless Steel And Cast Iron. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 5515097

  • CPMT322FG / CPMT090308FG CPMT positive turning insert with hole
  • 2 indexable cutting corners; 80° rhombic geometry; 0.031" corner radius, 0.375" IC, 0.125" thick
  • Grade TT5100 carbide with TiN+TiCN+Al2O3+TiN coated finish
  • FG chipbreaker for Finish to Medium-Light Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO M15-M35, P20-P40, S15-S35; stainless steel, steel, and heat-resistant super alloys (HRSA)
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5515097
ISO Part Number
CPMT090308FG
ANSI Part Number
CPMT322FG
Radius Size
0.031"
Thickness
0.125"
Material
Stainless, Steel, HRSA
Tool Coating
TiN+TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Finish to Medium-Light Turning
Angle Per Side
11°
Hand
Neutral
Included Angle
80°
Material Food Group
M15-M35, P20-P40, S15-S35
Grade
TT5100
Series
CPMT
Style
With Hole
Model
ISO Turn
Size
322
Type
Positive Turning Insert
Inscribed Circle
0.375"
Chip Breaker
FG
Number Of Points
2
