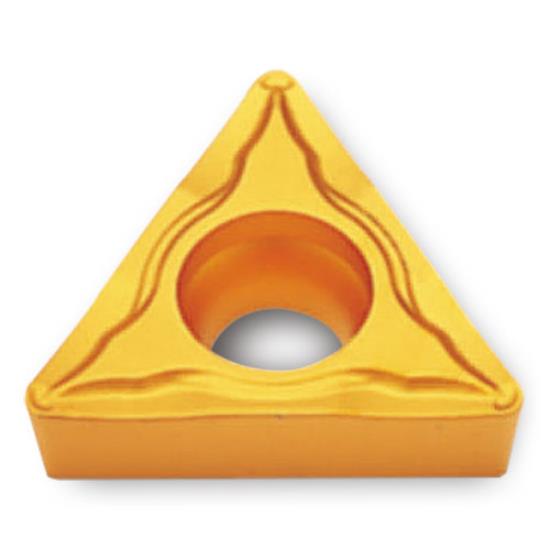

TPMT222PC / TPMT110308PC Grade TT5100 Carbide Positive Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with PC Chipbreaker for Medium Turning Stainless, Steel, HRSA

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
TPMT222PC / TPMT110308PC Grade TT5100 Carbide Positive Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with PC Chipbreaker for Medium Turning Stainless, Steel, HRSA TPMT222PC / TPMT110308PC Grade TT5100 Carbide Positive Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with PC Chipbreaker for Medium Turning Stainless, Steel, HRSA TPMT222PC / TPMT110308PC Grade TT5100 Carbide Positive Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with PC Chipbreaker for Medium Turning Stainless, Steel, HRSA TPMT222PC / TPMT110308PC Grade TT5100 Carbide Positive Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with PC Chipbreaker for Medium Turning Stainless, Steel, HRSA
INGERSOLL CUTTING TOOLS
5519699
5519699
TPMT110308PC TT5100
TPMT222PC TT5100
Weight: 0.008 LBS
Brand: INGERSOLL CUTTING TOOLS
$17.40
(47% off)
$9.22
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Tpmt222pc / Tpmt110308pc Is A Positive Turning Insert With Hole From The Iso Turn Turning Insert Line. This Tpmt Insert Is Manufactured In Grade Tt5100 Carbide Using Tin+Ticn+Al2o3+Tin Coated Finish And The Pc Chipbreaker For Medium Turning. It Provides 3 Indexable Cutting Corners In A 60° Triangular Geometry. Key Dimensions Include 0.031" Corner Radius, 0.250" Inscribed Circle, 0.125" Thickness. Recommended Workpiece Materials Include Stainless Steel, Steel And Heat-Resistant Super Alloys (Hrsa). Tt5100 Is A Tough Cvd Carbide Grade For Mild Steel, Low Carbon Steel And Low Carbon Alloy Steel Where Sticking And Edge Chipping Can Be A Problem. Iso Range M15-M35, P20-P40, S15-S35. Pc Is A Positive-Geometry Chipbreaker For Medium To Semi-Finishing Operations, Especially Steel And Automotive Components. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 5519699

  • TPMT222PC / TPMT110308PC TPMT positive turning insert with hole

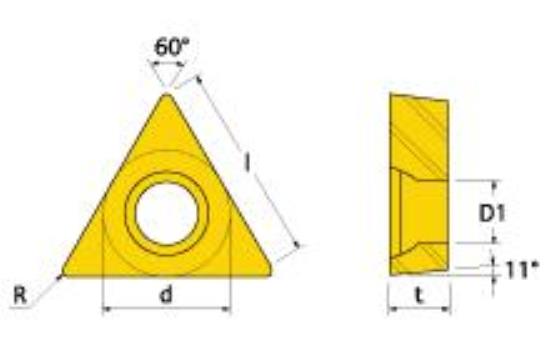

  • 3 indexable cutting corners; 60° triangular geometry; 0.031" corner radius, 0.250" IC, 0.125" thick
  • Grade TT5100 carbide with TiN+TiCN+Al2O3+TiN coated finish
  • PC chipbreaker for Medium Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO M15-M35, P20-P40, S15-S35; stainless steel, steel, and heat-resistant super alloys (HRSA)
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5519699
ISO Part Number
TPMT110308PC
ANSI Part Number
TPMT222PC
Radius Size
0.031"
Thickness
0.125"
Material
Stainless, Steel, HRSA
Tool Coating
TiN+TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Medium Turning
Angle Per Side
11°
Hand
Neutral
Included Angle
60°
Material Food Group
M15-M35, P20-P40, S15-S35
Grade
TT5100
Series
TPMT
Style
With Hole
Model
ISO Turn
Size
222
Type
Positive Turning Insert
Inscribed Circle
0.250"
Chip Breaker
PC
Number Of Points
3
