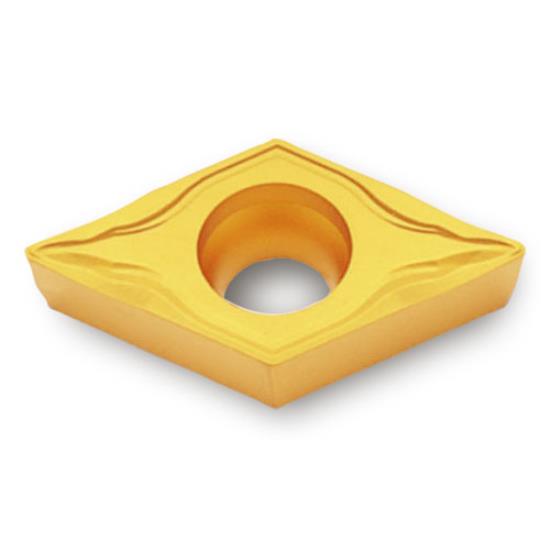

DCMT32.51FG / DCMT11T304FG Grade TT9235 Carbide Positive Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with FG Chipbreaker for Finish to Medium-Light Turning Stainless, HRSA

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
DCMT32.51FG / DCMT11T304FG Grade TT9235 Carbide Positive Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with FG Chipbreaker for Finish to Medium-Light Turning Stainless, HRSA DCMT32.51FG / DCMT11T304FG Grade TT9235 Carbide Positive Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with FG Chipbreaker for Finish to Medium-Light Turning Stainless, HRSA DCMT32.51FG / DCMT11T304FG Grade TT9235 Carbide Positive Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with FG Chipbreaker for Finish to Medium-Light Turning Stainless, HRSA DCMT32.51FG / DCMT11T304FG Grade TT9235 Carbide Positive Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with FG Chipbreaker for Finish to Medium-Light Turning Stainless, HRSA
INGERSOLL CUTTING TOOLS
5520623
5520623
DCMT11T304FG TT9235
DCMT32.51FG TT9235
Weight: 0.014 LBS
Brand: INGERSOLL CUTTING TOOLS
$24.15
(47% off)
$12.80
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Dcmt32.51Fg / Dcmt11t304fg Is A Positive Turning Insert With Hole From The Iso Turn Turning Insert Line. This Dcmt Insert Is Manufactured In Grade Tt9235 Carbide Using Ticn+Al2o3+Ticn Coated Finish And The Fg Chipbreaker For Finish To Medium-Light Turning. It Provides 2 Indexable Cutting Corners In A 55° Rhombic Geometry. Key Dimensions Include 0.016" Corner Radius, 0.375" Inscribed Circle, 0.156" Thickness. Recommended Workpiece Materials Include Stainless Steel And Heat-Resistant Super Alloys (Hrsa). Tt9235 Is A Tough Cvd Carbide Grade For Stainless Steel And Heat-Resistant Alloys Where Interruptions Or Higher Edge Toughness Are Required. Iso Range M25-M40, S25-S40. Fg Is A Finish To Semi-Finish Chipbreaker With Low Cutting Forces For Steel, Stainless Steel And Cast Iron. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 5520623

  • DCMT32.51FG / DCMT11T304FG DCMT positive turning insert with hole

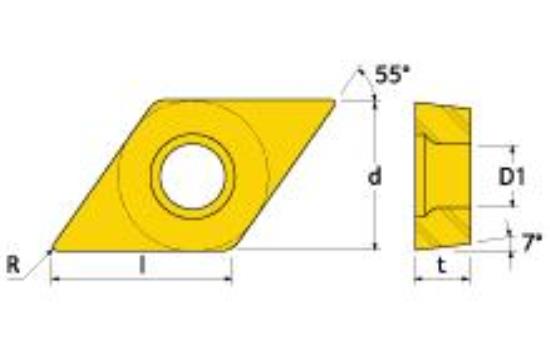

  • 2 indexable cutting corners; 55° rhombic geometry; 0.016" corner radius, 0.375" IC, 0.156" thick
  • Grade TT9235 carbide with TiCN+Al2O3+TiCN coated finish
  • FG chipbreaker for Finish to Medium-Light Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO M25-M40, S25-S40; stainless steel and heat-resistant super alloys (HRSA)
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5520623
ISO Part Number
DCMT11T304FG
ANSI Part Number
DCMT32.51FG
Radius Size
0.016"
Thickness
0.156"
Material
Stainless, HRSA
Tool Coating
TiCN+Al2O3+TiCN
Tool Substrate Material
Carbide
Primary Application
Finish to Medium-Light Turning
Angle Per Side
7°
Hand
Neutral
Included Angle
55°
Material Food Group
M25-M40, S25-S40
Grade
TT9235
Series
DCMT
Style
With Hole
Model
ISO Turn
Size
32.51
Type
Positive Turning Insert
Inscribed Circle
0.375"
Chip Breaker
FG
Number Of Points
2
