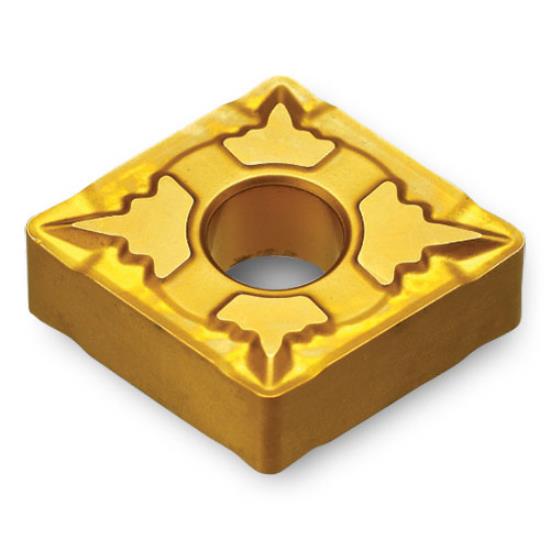

CNMG432EA / CNMG120408EA Grade TT9215 Carbide Negative Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with EA Chipbreaker for Super Finish Turning Stainless, HRSA

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
CNMG432EA / CNMG120408EA Grade TT9215 Carbide Negative Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with EA Chipbreaker for Super Finish Turning Stainless, HRSA CNMG432EA / CNMG120408EA Grade TT9215 Carbide Negative Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with EA Chipbreaker for Super Finish Turning Stainless, HRSA
INGERSOLL CUTTING TOOLS
5521927
5521927
CNMG120408EA TT9215
CNMG432EA TT9215
Weight: 0.027 LBS
Brand: INGERSOLL CUTTING TOOLS
$20.10
(47% off)
$10.65
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Cnmg432ea / Cnmg120408ea Is A Negative Turning Insert With Hole From The Iso Turn Turning Insert Line. This Cnmg Insert Is Manufactured In Grade Tt9215 Carbide Using Ticn+Al2o3+Ticn Coated Finish And The Ea Chipbreaker For Super Finish Turning. It Provides 4 Indexable Cutting Corners In An 80° Rhombic Geometry. Key Dimensions Include 0.031" Corner Radius, 0.500" Inscribed Circle, 0.187" Thickness. Recommended Workpiece Materials Include Stainless Steel And Heat-Resistant Super Alloys (Hrsa). Tt9215 Is A Cvd Carbide Grade For High-Speed Continuous Stainless Steel And Super Alloy Machining With Strong Wear Resistance. Iso Range M05-M20, S05-S20. Ea Is A Finishing Chipbreaker For Exotic And Gummy Materials, With Chip Control At Low Feeds And Shallow Depths Of Cut. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 5521927

  • CNMG432EA / CNMG120408EA CNMG negative turning insert with hole
  • 4 indexable cutting corners; 80° rhombic geometry; 0.031" corner radius, 0.500" IC, 0.187" thick
  • Grade TT9215 carbide with TiCN+Al2O3+TiCN coated finish
  • EA chipbreaker for Super Finish Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO M05-M20, S05-S20; stainless steel and heat-resistant super alloys (HRSA)
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5521927
ISO Part Number
CNMG120408EA
ANSI Part Number
CNMG432EA
Radius Size
0.031"
Thickness
0.187"
Material
Stainless, HRSA
Tool Coating
TiCN+Al2O3+TiCN
Tool Substrate Material
Carbide
Primary Application
Super Finish Turning
Hand
Neutral
Included Angle
80°
Material Food Group
M05-M20, S05-S20
Grade
TT9215
Series
CNMG
Style
With Hole
Model
ISO Turn
Size
432
Type
Negative Turning Insert
Inscribed Circle
0.500"
Chip Breaker
EA
Number Of Points
4
