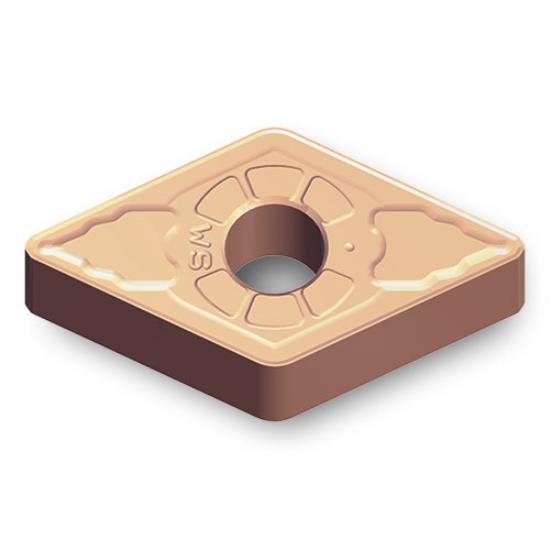

DNMG432WS / DNMG150408WS Grade TT9225 Carbide Negative Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with WS Wiper for Super Finish Turning Stainless, HRSA

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
DNMG432WS / DNMG150408WS Grade TT9225 Carbide Negative Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with WS Wiper for Super Finish Turning Stainless, HRSA DNMG432WS / DNMG150408WS Grade TT9225 Carbide Negative Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with WS Wiper for Super Finish Turning Stainless, HRSA DNMG432WS / DNMG150408WS Grade TT9225 Carbide Negative Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with WS Wiper for Super Finish Turning Stainless, HRSA
INGERSOLL CUTTING TOOLS
5522682
5522682
DNMG150408WS TT9225
DNMG432WS TT9225
Weight: 0.034 LBS
Brand: INGERSOLL CUTTING TOOLS
$27.40
(47% off)
$14.52
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Dnmg432ws / Dnmg150408ws Is A Negative Turning Insert With Hole From The Iso Turn Turning Insert Line. This Dnmg Insert Is Manufactured In Grade Tt9225 Carbide Using Ticn+Al2o3+Ticn Coated Finish And The Ws Wiper Chipbreaker For Super Finish Turning With Wiper. It Provides 4 Indexable Cutting Corners In A 55° Rhombic Geometry. Key Dimensions Include 0.031" Corner Radius, 0.500" Inscribed Circle, 0.187" Thickness. Recommended Workpiece Materials Include Stainless Steel And Heat-Resistant Super Alloys (Hrsa). Tt9225 Is A Cvd Carbide Grade For General Stainless Steel Machining With A Balance Of Wear Resistance And Fracture Resistance. Iso Range M15-M30, S15-S30. The Wiper Geometry Is Designed To Improve Surface Finish And Can Allow Higher Feed Rates In Suitable Finishing Operations. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 5522682

  • DNMG432WS / DNMG150408WS DNMG negative turning insert with hole
  • 4 indexable cutting corners; 55° rhombic geometry; 0.031" corner radius, 0.500" IC, 0.187" thick
  • Grade TT9225 carbide with TiCN+Al2O3+TiCN coated finish
  • WS Wiper chipbreaker for Super Finish Turning with Wiper
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO M15-M30, S15-S30; stainless steel and heat-resistant super alloys (HRSA)
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5522682
ISO Part Number
DNMG150408WS
ANSI Part Number
DNMG432WS
Radius Size
0.031"
Thickness
0.187"
Material
Stainless, HRSA
Tool Coating
TiCN+Al2O3+TiCN
Tool Substrate Material
Carbide
Primary Application
Super Finish Turning with Wiper
Hand
Neutral
Included Angle
55°
Material Food Group
M15-M30, S15-S30
Grade
TT9225
Series
DNMG
Style
With Hole
Model
ISO Turn
Size
432
Type
Negative Turning Insert
Inscribed Circle
0.500"
Chip Breaker
WS Wiper
Number Of Points
4
