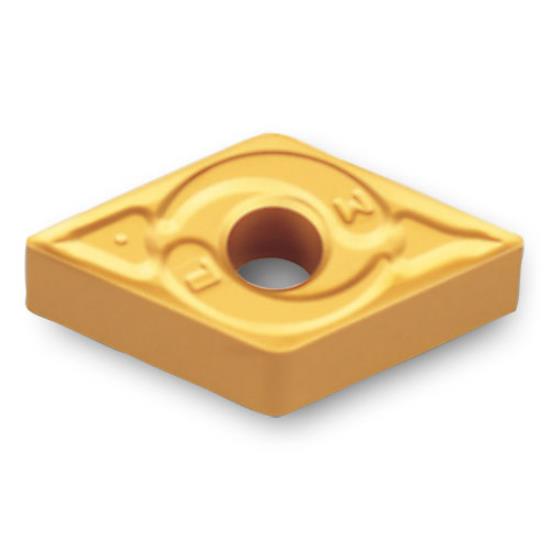

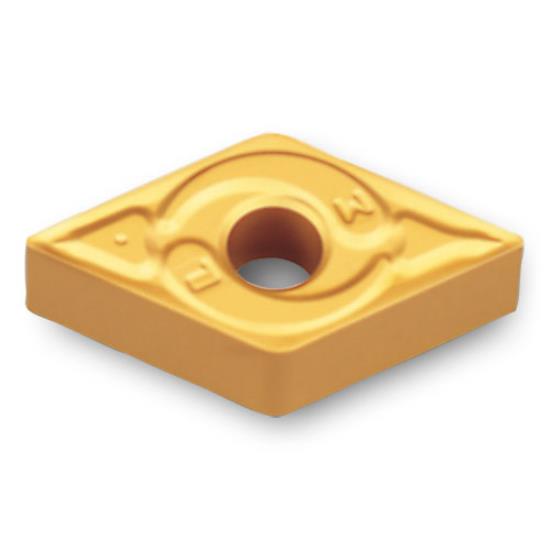

DNMG441MP / DNMG150604MP Grade TT5080 Carbide Negative Turning Insert With Hole, AlTiN+TiN Coated with MP Chipbreaker for Medium Turning Stainless, HRSA

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
DNMG441MP / DNMG150604MP Grade TT5080 Carbide Negative Turning Insert With Hole, AlTiN+TiN Coated with MP Chipbreaker for Medium Turning Stainless, HRSA DNMG441MP / DNMG150604MP Grade TT5080 Carbide Negative Turning Insert With Hole, AlTiN+TiN Coated with MP Chipbreaker for Medium Turning Stainless, HRSA DNMG441MP / DNMG150604MP Grade TT5080 Carbide Negative Turning Insert With Hole, AlTiN+TiN Coated with MP Chipbreaker for Medium Turning Stainless, HRSA DNMG441MP / DNMG150604MP Grade TT5080 Carbide Negative Turning Insert With Hole, AlTiN+TiN Coated with MP Chipbreaker for Medium Turning Stainless, HRSA
INGERSOLL CUTTING TOOLS
5523055
5523055
DNMG150604MP TT5080
DNMG441MP TT5080
Weight: 0.042 LBS
Brand: INGERSOLL CUTTING TOOLS
$30.85
(47% off)
$16.35
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Dnmg441mp / Dnmg150604mp Is A Negative Turning Insert With Hole From The Iso Turn Turning Insert Line. This Dnmg Insert Is Manufactured In Grade Tt5080 Carbide Using Altin+Tin Coated Finish And The Mp Chipbreaker For Medium Turning. It Provides 4 Indexable Cutting Corners In A 55° Rhombic Geometry. Key Dimensions Include 0.016" Corner Radius, 0.500" Inscribed Circle, 0.250" Thickness. Recommended Workpiece Materials Include Stainless Steel And Heat-Resistant Super Alloys (Hrsa). Tt5080 Is A Hard Submicron Pvd Carbide Grade For Stainless Steels, High-Temperature Alloys And Other Gummy Materials Requiring A Sharp, Wear-Resistant Edge. Iso Range M05-M25, S05-S25. Mp Is A Medium-Machining Chipbreaker With High-Positive Geometry For Stable Cutting In Steel And Stainless Steel. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 5523055

  • DNMG441MP / DNMG150604MP DNMG negative turning insert with hole

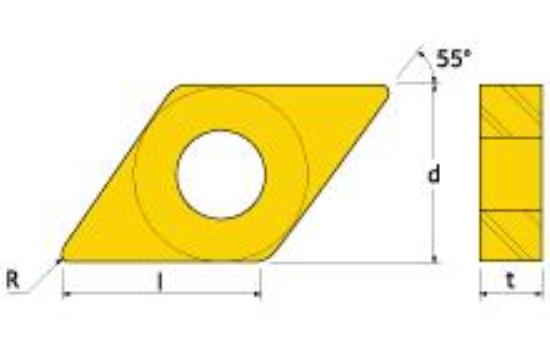

  • 4 indexable cutting corners; 55° rhombic geometry; 0.016" corner radius, 0.500" IC, 0.250" thick
  • Grade TT5080 carbide with AlTiN+TiN coated finish
  • MP chipbreaker for Medium Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO M05-M25, S05-S25; stainless steel and heat-resistant super alloys (HRSA)
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5523055
ISO Part Number
DNMG150604MP
ANSI Part Number
DNMG441MP
Radius Size
0.016"
Thickness
0.250"
Material
Stainless, HRSA
Tool Coating
AlTiN+TiN
Tool Substrate Material
Carbide
Primary Application
Medium Turning
Hand
Neutral
Included Angle
55°
Material Food Group
M05-M25, S05-S25
Grade
TT5080
Series
DNMG
Style
With Hole
Model
ISO Turn
Size
441
Type
Negative Turning Insert
Inscribed Circle
0.500"
Chip Breaker
MP
Number Of Points
4
