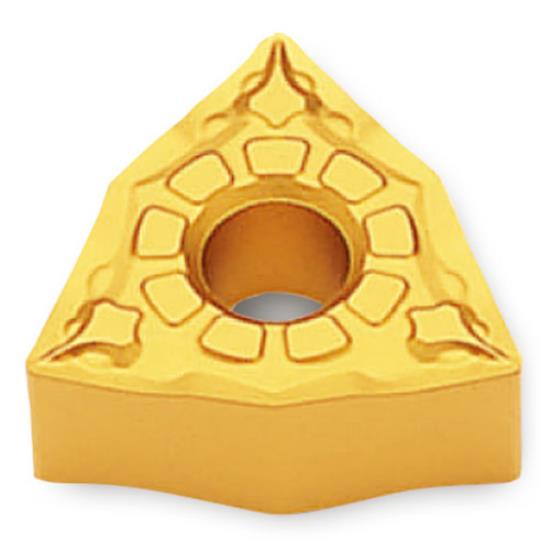

WNMG431FG / WNMG080404FG Grade TT5080 Carbide Negative Turning Insert With Hole, AlTiN+TiN Coated with FG Chipbreaker for Finish to Semi-Finish Turning Stainless, HRSA

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
WNMG431FG / WNMG080404FG Grade TT5080 Carbide Negative Turning Insert With Hole, AlTiN+TiN Coated with FG Chipbreaker for Finish to Semi-Finish Turning Stainless, HRSA WNMG431FG / WNMG080404FG Grade TT5080 Carbide Negative Turning Insert With Hole, AlTiN+TiN Coated with FG Chipbreaker for Finish to Semi-Finish Turning Stainless, HRSA WNMG431FG / WNMG080404FG Grade TT5080 Carbide Negative Turning Insert With Hole, AlTiN+TiN Coated with FG Chipbreaker for Finish to Semi-Finish Turning Stainless, HRSA WNMG431FG / WNMG080404FG Grade TT5080 Carbide Negative Turning Insert With Hole, AlTiN+TiN Coated with FG Chipbreaker for Finish to Semi-Finish Turning Stainless, HRSA
INGERSOLL CUTTING TOOLS
5523111
5523111
WNMG080404FG TT5080
WNMG431FG TT5080
Weight: 0.027 LBS
Brand: INGERSOLL CUTTING TOOLS
$21.95
(47% off)
$11.63
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Wnmg431fg / Wnmg080404fg Is A Negative Turning Insert With Hole From The Iso Turn Turning Insert Line. This Wnmg Insert Is Manufactured In Grade Tt5080 Carbide Using Altin+Tin Coated Finish And The Fg Chipbreaker For Finish To Semi-Finish Turning. It Provides 6 Indexable Cutting Corners In An 80° Trigon Geometry. Key Dimensions Include 0.016" Corner Radius, 0.500" Inscribed Circle, 0.187" Thickness. Recommended Workpiece Materials Include Stainless Steel And Heat-Resistant Super Alloys (Hrsa). Tt5080 Is A Hard Submicron Pvd Carbide Grade For Stainless Steels, High-Temperature Alloys And Other Gummy Materials Requiring A Sharp, Wear-Resistant Edge. Iso Range M05-M25, S05-S25. Fg Is A Finish To Semi-Finish Chipbreaker With Low Cutting Forces For Steel, Stainless Steel And Cast Iron. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 5523111

  • WNMG431FG / WNMG080404FG WNMG negative turning insert with hole

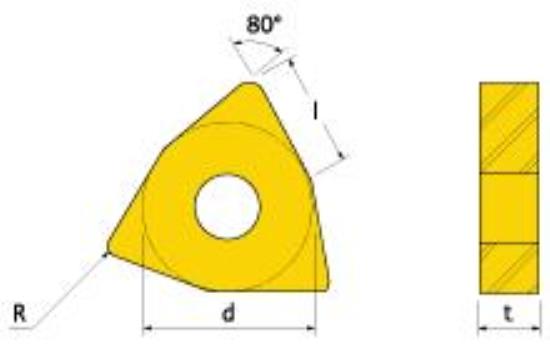

  • 6 indexable cutting corners; 80° trigon geometry; 0.016" corner radius, 0.500" IC, 0.187" thick
  • Grade TT5080 carbide with AlTiN+TiN coated finish
  • FG chipbreaker for Finish to Semi-Finish Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO M05-M25, S05-S25; stainless steel and heat-resistant super alloys (HRSA)
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory Stock
30
Add to Cart

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5523111
ISO Part Number
WNMG080404FG
ANSI Part Number
WNMG431FG
Radius Size
0.016"
Thickness
0.187"
Material
Stainless, HRSA
Tool Coating
AlTiN+TiN
Tool Substrate Material
Carbide
Primary Application
Finish to Semi-Finish Turning
Hand
Neutral
Included Angle
80°
Material Food Group
M05-M25, S05-S25
Grade
TT5080
Series
WNMG
Style
With Hole
Model
ISO Turn
Size
431
Type
Negative Turning Insert
Inscribed Circle
0.500"
Chip Breaker
FG
Number Of Points
6
