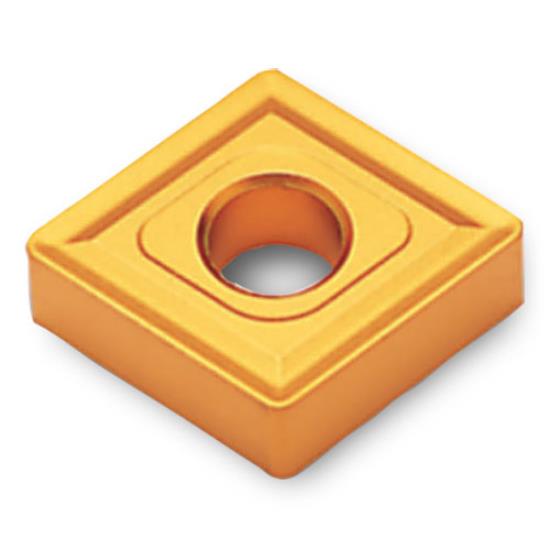

CNMG642 / CNMG190608 Grade TT7005 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3 Coated with MG- Chipbreaker for Medium-Rough Turning Cast Iron

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
CNMG642 / CNMG190608 Grade TT7005 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3 Coated with MG- Chipbreaker for Medium-Rough Turning Cast Iron CNMG642 / CNMG190608 Grade TT7005 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3 Coated with MG- Chipbreaker for Medium-Rough Turning Cast Iron CNMG642 / CNMG190608 Grade TT7005 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3 Coated with MG- Chipbreaker for Medium-Rough Turning Cast Iron CNMG642 / CNMG190608 Grade TT7005 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3 Coated with MG- Chipbreaker for Medium-Rough Turning Cast Iron
INGERSOLL CUTTING TOOLS
5523747
5523747
CNMG190608 TT7005
CNMG642 TT7005
Weight: 0.074 LBS
Brand: INGERSOLL CUTTING TOOLS
$45.45
(47% off)
$24.09
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Cnmg642 / Cnmg190608 Is A Negative Turning Insert With Hole From The Iso Turn Turning Insert Line. This Cnmg Insert Is Manufactured In Grade Tt7005 Carbide Using Tin+Ticn+Al2o3 Coated Finish And The Mg- Chipbreaker For Medium-Rough Turning. It Provides 4 Indexable Cutting Corners In An 80° Rhombic Geometry. Key Dimensions Include 0.031" Corner Radius, 0.750" Inscribed Circle, 0.250" Thickness. Recommended Workpiece Materials Include Cast Iron. Tt7005 Is A Cvd Carbide Grade Aimed At High-Speed Continuous Machining Of Gray And Ductile Cast Iron, With Excellent Wear Resistance. Iso Range K05-K15. Mg Is A Medium/General Chipbreaker For Stable Chip Control In Routine Turning Operations. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 5523747

  • CNMG642 / CNMG190608 CNMG negative turning insert with hole
  • 4 indexable cutting corners; 80° rhombic geometry; 0.031" corner radius, 0.750" IC, 0.250" thick
  • Grade TT7005 carbide with TiN+TiCN+Al2O3 coated finish
  • MG- chipbreaker for Medium-Rough Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO K05-K15; cast iron
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5523747
ISO Part Number
CNMG190608
ANSI Part Number
CNMG642
Radius Size
0.031"
Thickness
0.250"
Material
Cast Iron
Tool Coating
TiN+TiCN+Al2O3
Tool Substrate Material
Carbide
Primary Application
Medium-Rough Turning
Hand
Neutral
Included Angle
80°
Material Food Group
K05-K15
Grade
TT7005
Series
CNMG
Style
With Hole
Model
ISO Turn
Size
642
Type
Negative Turning Insert
Inscribed Circle
0.750"
Chip Breaker
MG-
Number Of Points
4
