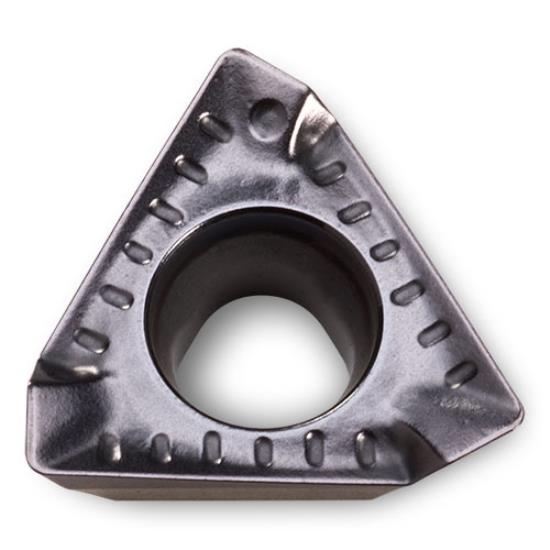

THLS060404R-HR IN2505 HiPosTrio Insert
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
5616397
5616397
THLS060404R-HR IN2505
THLS060404R-HR IN2505
Weight: 0.006 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
Thls060404r-Hr In2505 Hipostrio Insert Iso Item #Thls060404r-Hr In2505 Ingersoll Part #5616397 Re - Corner Radius: 0.015. Ih - Insert Hand: Right. Noi - Number Of Indexes: 3. S - Thickness: 0.157. Bs - Wiper Length: 0.051. Application: Ss/Hi-Temp/Ti. Le - Cutting Edge Eff. Length: 0.270. Ic - Inscribed Circle Diameter : 0.272. Re - Corner Radius: 0.015. Ih - Insert Hand: Right. Noi - Number Of Indexes: 3. S - Thickness: 0.157. Bs - Wiper Length: 0.051. Application: Ss/Hi-Temp/Ti. Le - Cutting Edge Eff. Length: 0.270. Ic - Inscribed Circle Dia.: 0.272.
- Pressed rake face geometry promotes efficient chip formation
- Integrated wiper flat on face for producing surface finishes as good as 32 Ra
- Keen edge for SS/Hi-Temp/Ti materials
- Designed for multiple materials and applications
- 3 Indexes
- Pressed rake face geometry promotes efficient chip formation
- Integrated wiper flat on face for producing surface finishes as good as 32 Ra
- Keen edge for SS/Hi-Temp/Ti materials
- Designed for multiple materials and applications
- 3 Indexes
- 0.750 Min.
- Cylindrical Shank
- 6 mm Insert with 3 indexes
- Cutting Edge Angles: 30deg, 45deg, 60deg
- Included Angles: 120deg, 90deg, 60deg
- 0.625-1.500" (Weldon)
- .27" Depth of cut
- 6 mm Insert with 3 indexes
- 32-63 Ra surface finishes when engaging the wiper (WEP)
- Insert corners: .015", .031", .062" R
- 0.750-1.500"
- TopOn Connection
- 6 mm Insert with 3 indexes
- .27" Depth of cut
- 32-63 Ra surface finishes when engaging the wiper (WEP)
- Insert corners: .015", .031", .062" R
- 020-40 mm
- Weldon Shank (Metric)
- 6 mm Insert with 3 indexes
- Insert corners: 0.4, 0.8 & 1.6mm R
- 32-63 Ra surface finishes when engaging the wiper (WEP)
- 7mm Depth of cut
- 020-40 mm
- TopOn Connection
- 6 mm Insert with 3 indexes
- Insert corners: 0.4, 0.8 & 1.6mm R
- 32-63 Ra surface finishes when engaging the wiper (WEP)
- 7 mm Depth of cut
- 01.250"
- TopOn Connection
- 6 mm Insert with 3 indexes
- Ideal for long reach side wall finishing
- Insert corners: .015", .031", .062" R
- 01.500-3.000"
- 6 mm Insert with 3 indexes
- .27" Depth of Cut
- 32-63 Ra surface finishes when engaging the wiper (WEP)
- Insert corners: .015", .031", .062" R
- 035-63 mm
- 6 mm Insert with 3 indexes
- 7 mm Depth of Cut
- 32-63 Ra surface finishes when engaging the wiper (WEP)
- Insert corners: 0.4, 0.8 & 1.6 mm R
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 5616397
- Radius Size
- 0.015"
- Hand
- Right
- Inscribed Circle
- 0.2720"
