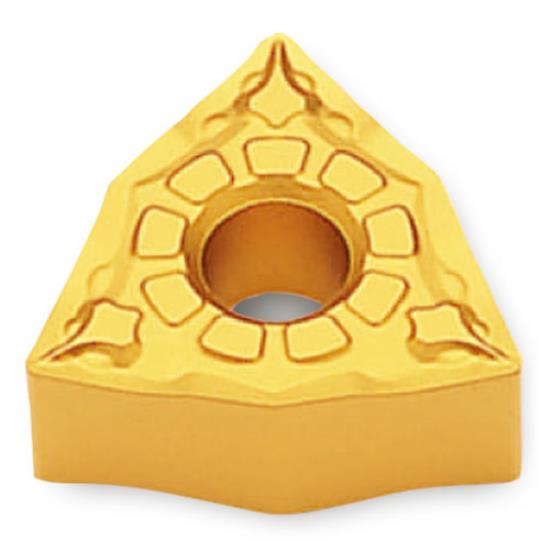

WNMG432FG / WNMG080408FG Grade CT3000 Cermet Negative Turning Insert With Hole, Uncoated with FG Chipbreaker for Finish to Semi-Finish Turning Cast Iron, Stainless, Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
WNMG432FG / WNMG080408FG Grade CT3000 Cermet Negative Turning Insert With Hole, Uncoated with FG Chipbreaker for Finish to Semi-Finish Turning Cast Iron, Stainless, Steel WNMG432FG / WNMG080408FG Grade CT3000 Cermet Negative Turning Insert With Hole, Uncoated with FG Chipbreaker for Finish to Semi-Finish Turning Cast Iron, Stainless, Steel
INGERSOLL CUTTING TOOLS
5740149
5740149
WNMG080408FG CT3000
WNMG432FG CT3000
Weight: 0.027 LBS
Brand: INGERSOLL CUTTING TOOLS
$17.10
(47% off)
$9.06
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Wnmg432fg / Wnmg080408fg Uses Ct3000 Uncoated Cermet For High-Quality Finish Turning And Controlled Wear. This Insert Is Intended For Steel Finishing And Semi-Finishing Where Part Finish, Dimensional Consistency And Low Cutting Friction Are Important. The Fg Chipbreaker Is Aimed At Finishing Or Semi-Finishing Work, Supporting Chip Control At Lighter Depths Of Cut. In The Proper Application, Cermet Can Reduce Cost Per Part Versus A Carbide Finishing Grade By Running Cleanly And Holding A Fine Edge On Stable Cuts. It Is Not The First Choice For Heavy Roughing, Hard Scale Or Severe Interrupted Cuts. Key Dimensions Include 0.500" Ic, 0.187" Thickness, 0.031" Corner Radius. Neutral With Hole Design. Ingersoll Part # 5740149

  • WNMG432FG / WNMG080408FG CT3000 cermet turning insert
  • Exceptional finishing capability for steel applications
  • Cermet grade helps deliver excellent surface finish and low cutting friction
  • Can reduce cost per finished part versus carbide in stable finishing applications
  • FG chipbreaker for finish to semi-finish turning
  • Uncoated cermet grade for clean finishing cuts and low friction
  • 0.500" IC, 0.187" thickness, 0.031" corner radius
  • 6 usable cutting edges
  • Recommended for ISO K10-K20, M10-M15, P10-P15; cast iron, stainless steel, and steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5740149
ISO Part Number
WNMG080408FG
ANSI Part Number
WNMG432FG
Radius Size
0.031"
Thickness
0.187"
Material
Cast Iron, Stainless, Steel
Tool Coating
Uncoated
Tool Substrate Material
Cermet
Primary Application
Finish to Semi-Finish Turning
Hand
Neutral
Included Angle
80°
Material Food Group
K10-K20, M10-M15, P10-P15
Grade
CT3000
Series
WNMG
Style
With Hole
Model
ISO Turn
Size
432
Type
Negative Turning Insert
Inscribed Circle
0.500"
Chip Breaker
FG
Number Of Points
6
