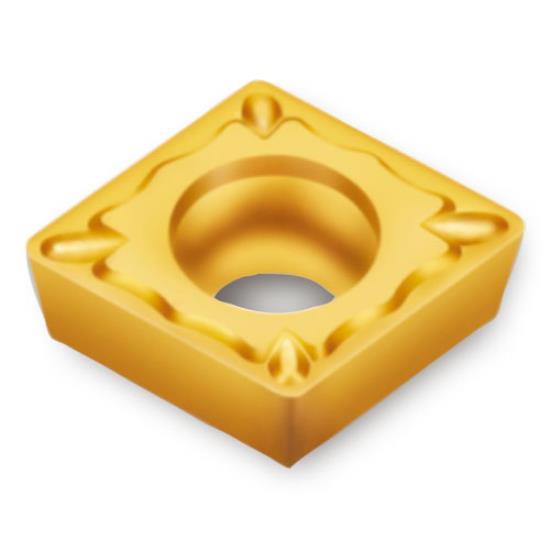

CPMT2.51.51FG / CPMT080204FG Grade CT3000 Cermet Positive Turning Insert With Hole, Uncoated with FG Chipbreaker for Finish to Medium-Light Turning Cast Iron, Stainless, Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
CPMT2.51.51FG / CPMT080204FG Grade CT3000 Cermet Positive Turning Insert With Hole, Uncoated with FG Chipbreaker for Finish to Medium-Light Turning Cast Iron, Stainless, Steel CPMT2.51.51FG / CPMT080204FG Grade CT3000 Cermet Positive Turning Insert With Hole, Uncoated with FG Chipbreaker for Finish to Medium-Light Turning Cast Iron, Stainless, Steel
INGERSOLL CUTTING TOOLS
5760215
5760215
CPMT080204FG CT3000
CPMT2.51.51FG CT3000
Weight: 0.009 LBS
Brand: INGERSOLL CUTTING TOOLS
$15.85
(47% off)
$8.40
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Cpmt2.51.51Fg / Cpmt080204fg Is An Uncoated Ct3000 Cermet Positive Turning Insert In A 80° Rhombic Cpmt Style. Ct3000 Is An Uncoated Cermet Grade Intended For Excellent Surface Finish Turning With Strong Wear Resistance And A Low Coefficient Of Friction. Compared With A Carbide Finishing Insert, This Cermet Insert Can Help Lower Cost Per Finished Part In The Right Steel Finishing Application By Producing A Smoother Finish, Reducing Built-Up Edge And Maintaining A Predictable Cutting Edge. The Fg Chipbreaker Is Aimed At Finishing Or Semi-Finishing Work, Supporting Chip Control At Lighter Depths Of Cut. Best Used For Stable Finishing, Light Turning And Semi-Finishing On Steel Applications, With Additional Capability In Stainless Steel And Cast Iron Where The Workholding And Cut Are Stable. Key Dimensions Include 0.313" Ic, 0.094" Thickness, 0.016" Corner Radius. Neutral With Hole Design. Ingersoll Part # 5760215

  • CPMT2.51.51FG / CPMT080204FG CT3000 cermet turning insert
  • Exceptional finishing capability for steel applications
  • Cermet grade helps deliver excellent surface finish and low cutting friction
  • Can reduce cost per finished part versus carbide in stable finishing applications
  • FG chipbreaker for finish to medium-light turning
  • Uncoated cermet grade for clean finishing cuts and low friction
  • 0.313" IC, 0.094" thickness, 0.016" corner radius
  • 2 usable cutting edges
  • Recommended for ISO K10-K20, M10-M15, P10-P15; cast iron, stainless steel, and steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5760215
ISO Part Number
CPMT080204FG
ANSI Part Number
CPMT2.51.51FG
Radius Size
0.016"
Thickness
0.094"
Material
Cast Iron, Stainless, Steel
Tool Coating
Uncoated
Tool Substrate Material
Cermet
Primary Application
Finish to Medium-Light Turning
Angle Per Side
11°
Hand
Neutral
Included Angle
80°
Material Food Group
K10-K20, M10-M15, P10-P15
Grade
CT3000
Series
CPMT
Style
With Hole
Model
ISO Turn
Size
2.51.51
Type
Positive Turning Insert
Inscribed Circle
0.313"
Chip Breaker
FG
Number Of Points
2
