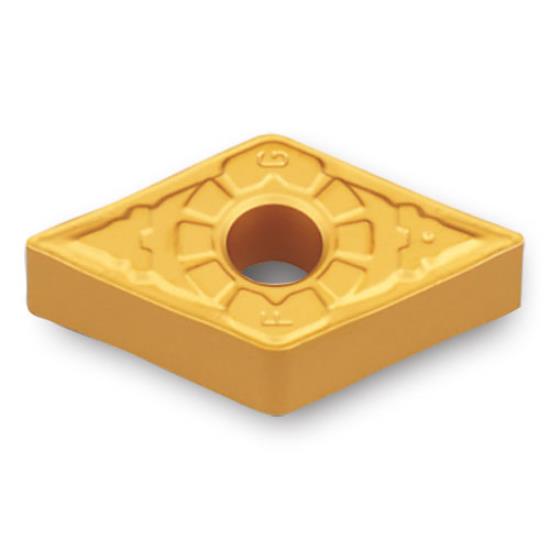

DNMG331FG / DNMG110404FG Grade CT3000 Cermet Negative Turning Insert With Hole, Uncoated with FG Chipbreaker for Finish to Semi-Finish Turning Cast Iron, Stainless, Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
DNMG331FG / DNMG110404FG Grade CT3000 Cermet Negative Turning Insert With Hole, Uncoated with FG Chipbreaker for Finish to Semi-Finish Turning Cast Iron, Stainless, Steel DNMG331FG / DNMG110404FG Grade CT3000 Cermet Negative Turning Insert With Hole, Uncoated with FG Chipbreaker for Finish to Semi-Finish Turning Cast Iron, Stainless, Steel DNMG331FG / DNMG110404FG Grade CT3000 Cermet Negative Turning Insert With Hole, Uncoated with FG Chipbreaker for Finish to Semi-Finish Turning Cast Iron, Stainless, Steel DNMG331FG / DNMG110404FG Grade CT3000 Cermet Negative Turning Insert With Hole, Uncoated with FG Chipbreaker for Finish to Semi-Finish Turning Cast Iron, Stainless, Steel
INGERSOLL CUTTING TOOLS
5780221
5780221
DNMG110404FG CT3000
DNMG331FG CT3000
Weight: 0.017 LBS
Brand: INGERSOLL CUTTING TOOLS
$18.15
(47% off)
$9.62
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Dnmg331fg / Dnmg110404fg Is A Dnmg 55° Rhombic Cermet Turning Insert Made In Grade Ct3000. Ct3000 Is An Uncoated Cermet Grade Intended For Excellent Surface Finish Turning With Strong Wear Resistance And A Low Coefficient Of Friction. Cermet Is A Strong Choice When The Job Calls For Exceptional Surface Finish In Steel Rather Than Heavy Roughing Toughness. In Stable Continuous Or Lightly Interrupted Cuts, It Can Be A Cost-Saving Alternative To Carbide By Improving Finish Quality And Helping Extend Finishing Edge Life. The Fg Chipbreaker Is Aimed At Finishing Or Semi-Finishing Work, Supporting Chip Control At Lighter Depths Of Cut. Use It For Finish To Semi-Finish Turning In Cast Iron, Stainless, Steel. Key Dimensions Include 0.375" Ic, 0.187" Thickness, 0.016" Corner Radius. Neutral With Hole Design. Ingersoll Part # 5780221

  • DNMG331FG / DNMG110404FG CT3000 cermet turning insert
  • Exceptional finishing capability for steel applications
  • Cermet grade helps deliver excellent surface finish and low cutting friction
  • Can reduce cost per finished part versus carbide in stable finishing applications
  • FG chipbreaker for finish to semi-finish turning
  • Uncoated cermet grade for clean finishing cuts and low friction

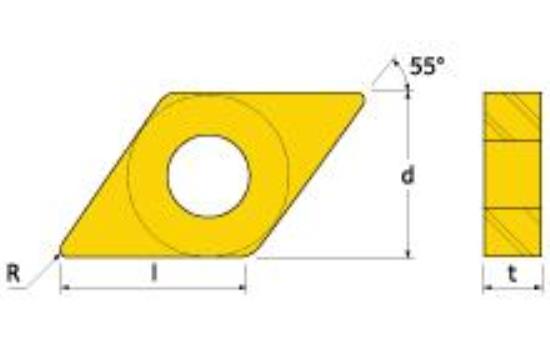

  • 0.375" IC, 0.187" thickness, 0.016" corner radius
  • 4 usable cutting edges
  • Recommended for ISO K10-K20, M10-M15, P10-P15; cast iron, stainless steel, and steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5780221
ISO Part Number
DNMG110404FG
ANSI Part Number
DNMG331FG
Radius Size
0.016"
Thickness
0.187"
Material
Cast Iron, Stainless, Steel
Tool Coating
Uncoated
Tool Substrate Material
Cermet
Primary Application
Finish to Semi-Finish Turning
Hand
Neutral
Included Angle
55°
Material Food Group
K10-K20, M10-M15, P10-P15
Grade
CT3000
Series
DNMG
Style
With Hole
Model
ISO Turn
Size
331
Type
Negative Turning Insert
Inscribed Circle
0.375"
Chip Breaker
FG
Number Of Points
4
